WATER PUMP

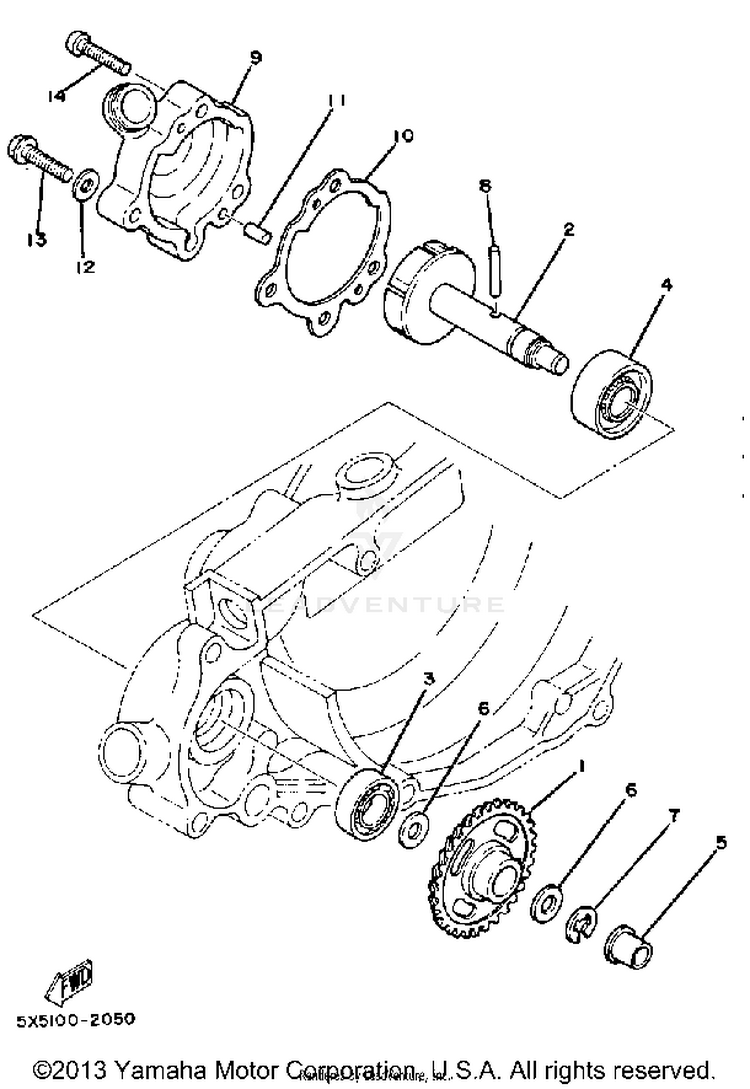

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X5-12459-00-00GEAR, IMPELLER SHAF (31T)$42.12$34.54Usually ships in 7-10 business days
25X5-12450-00-00IMPELLER SHAFT ASSEMBLY$34.34$28.16Not Shipping
393306-00105-00BEARING$33.99$26.5110+ In-Stock
493103-12119-00OIL SEAL$33.99$26.512 In-Stock
590381-08002-00BUSH, SOLID$12.49$9.744 In-Stock
690201-127J6-00

(replaces part #
90201-12164-00)

WASHER, PLATE$9.49$7.408 In-Stock
799001-08600-00CIRCLIP$9.49$7.405 In-Stock
893603-22028-00PIN, DOWEL$4.05$3.487 In-Stock
95X5-12422-00-00COVER, HOUSING$73.14$57.05Usually ships in 7-10 business days
105X5-12428-01-00

(replaces part #
5X5-12428-00-00)

GASKET,HSNG CVR 2-$5.25Not Shipping
1193604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
1290430-06166-00GASKET$4.05$3.4810+ In-Stock
1395817-06025-00

(replaces part #
95816-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1498517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
