1983 Yamaha IT175 Seat OEM Parts Diagram

Submodel IT175K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

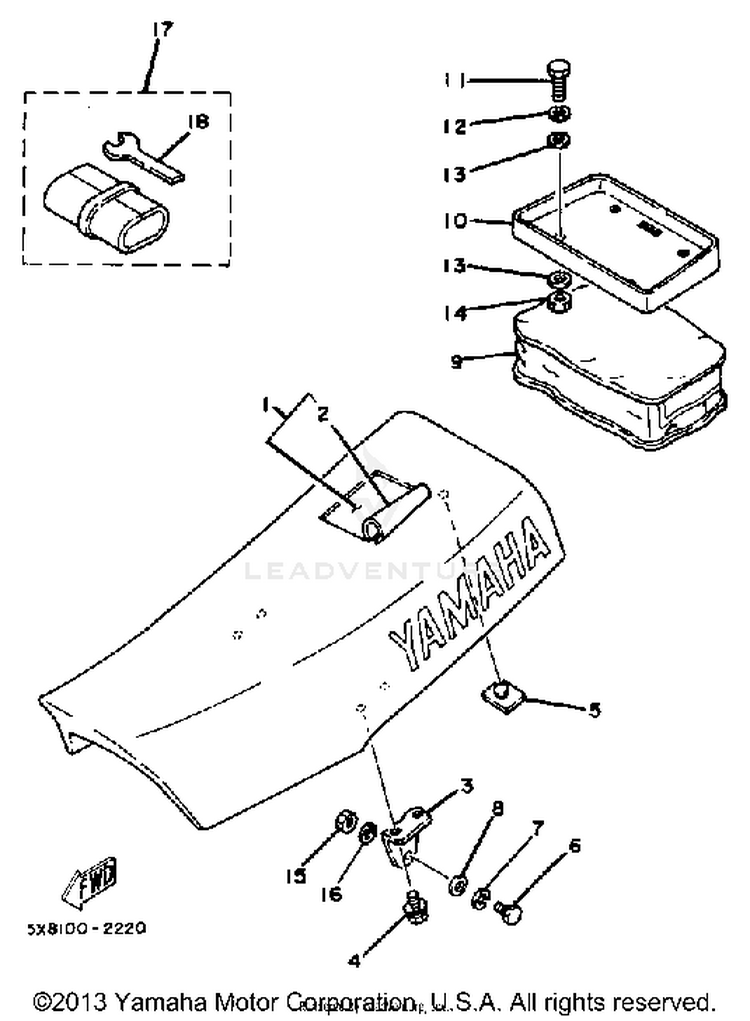

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X8-W2473-00-00SEMI-DBL-SEAT ASSEMBLY$181.99$141.95Not Shipping
25X8-24771-00-00COVER, SM-DBL SEAT$91.99$71.75Not Shipping
31W1-24738-00-00BRACKET, SEAT$11.99$9.83Not Shipping
490101-06304-00BOLT$8.49$6.624 In-Stock
5509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
697D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
892990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
94V5-24850-00-00CARRIER BOX ASSEMBLY$161.99$126.35Not Shipping
104V5-24833-00-00BRACKET, CARRIER 2$51.99$40.55Not Shipping
1197D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1390201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
1495380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1595617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1692990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
171W2-W2810-00-00TOOL KIT$73.99$57.71Not Shipping
1810V-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
