1983 Yamaha IT175 Steering OEM Parts Diagram

Submodel IT175K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

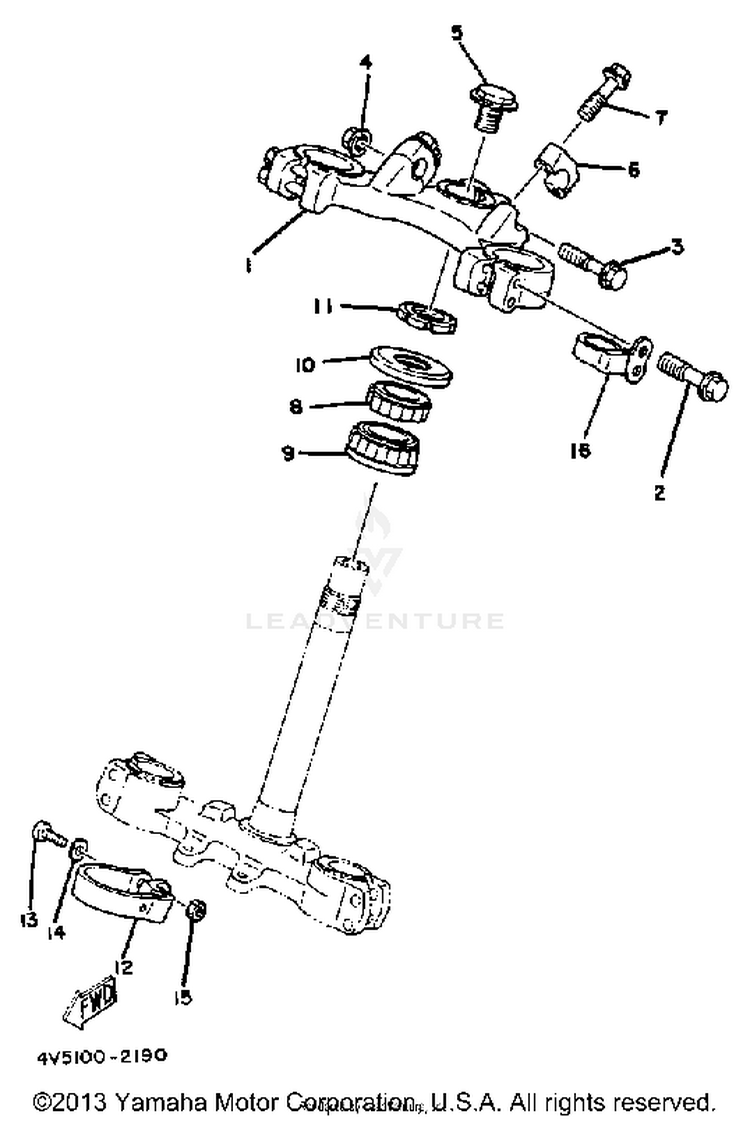

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11W4-23435-00-98CROWN, HANDLE | LOW GLOSS BLACK$94.29$73.55Usually ships in 7-10 business days
295814-08040-00

(replaces part #
90105-08091-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
395817-08055-00

(replaces part #
95811-08055-00)

BOLT, FLANGE$4.21$3.6210+ In-Stock
495704-08500-00

(replaces part #
95701-08500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
590105-14102-00BOLT, FLANGE$6.49$5.063 In-Stock
61E6-23441-00-00HOLDER, HANDLE UPR (1E6-23441-0 | LOW GLOSS BLK$30.99$24.1710+ In-Stock
795817-08035-00

(replaces part #
95811-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
893332-00001-00BEARING$63.99$49.913 In-Stock
993332-00008-00BEARING$73.99$57.714 In-Stock
101W1-23416-00-00

(replaces part #
3HE-23416-00-00)

COVER, BALL RACE 2$32.99$25.736 In-Stock
1190179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
121W2-23318-00-00HOLDER, CABLE 1$25.99$21.31Not Shipping
1398507-05018-00

(replaces part #
98501-05018-00)

SCREW, PAN HEAD$3.55$3.0510+ In-Stock
1492990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
1595380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
163R4-23389-00-00GUIDE, CABLE$32.99$25.7310+ In-Stock
