1983 Yamaha IT175 Side Cover OEM Parts Diagram

Submodel IT175K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

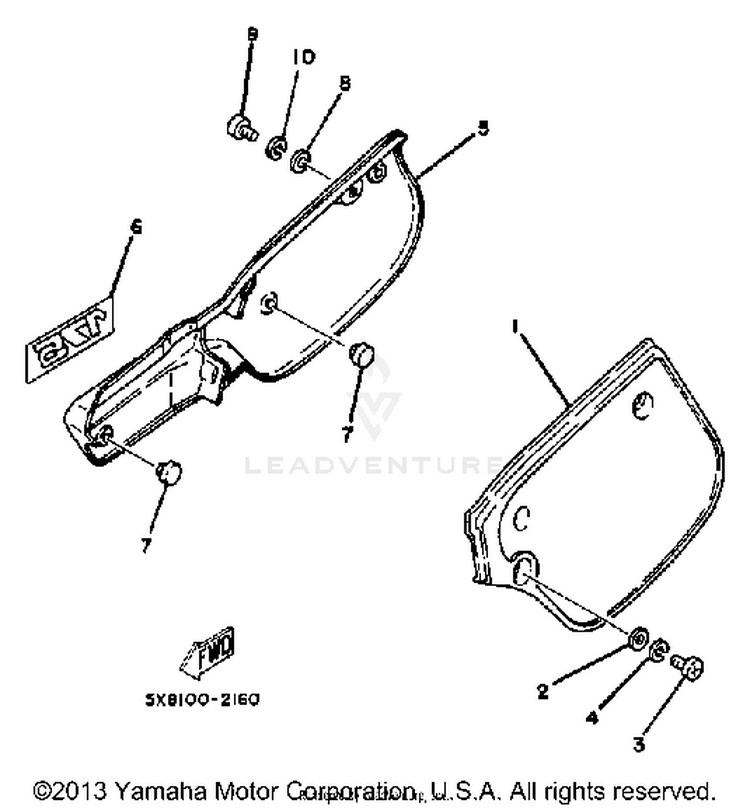

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X8-21711-00-26COVER, SIDE 1 | COMP. YELLOW/ SKY BLUE$59.99$46.79Not Shipping
290201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
398507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
55X8-21721-00-26COVER, SIDE 2 | COMP. YELLOW/ SKY BLUE$69.99$54.59Not Shipping
65X8-21737-00-00EMBLEM$10.99$9.01Not Shipping
722W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
890201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
998507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
