1984 Yamaha IT200 Carburetor OEM Parts Diagram

Submodel IT200L - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CARBURETOR

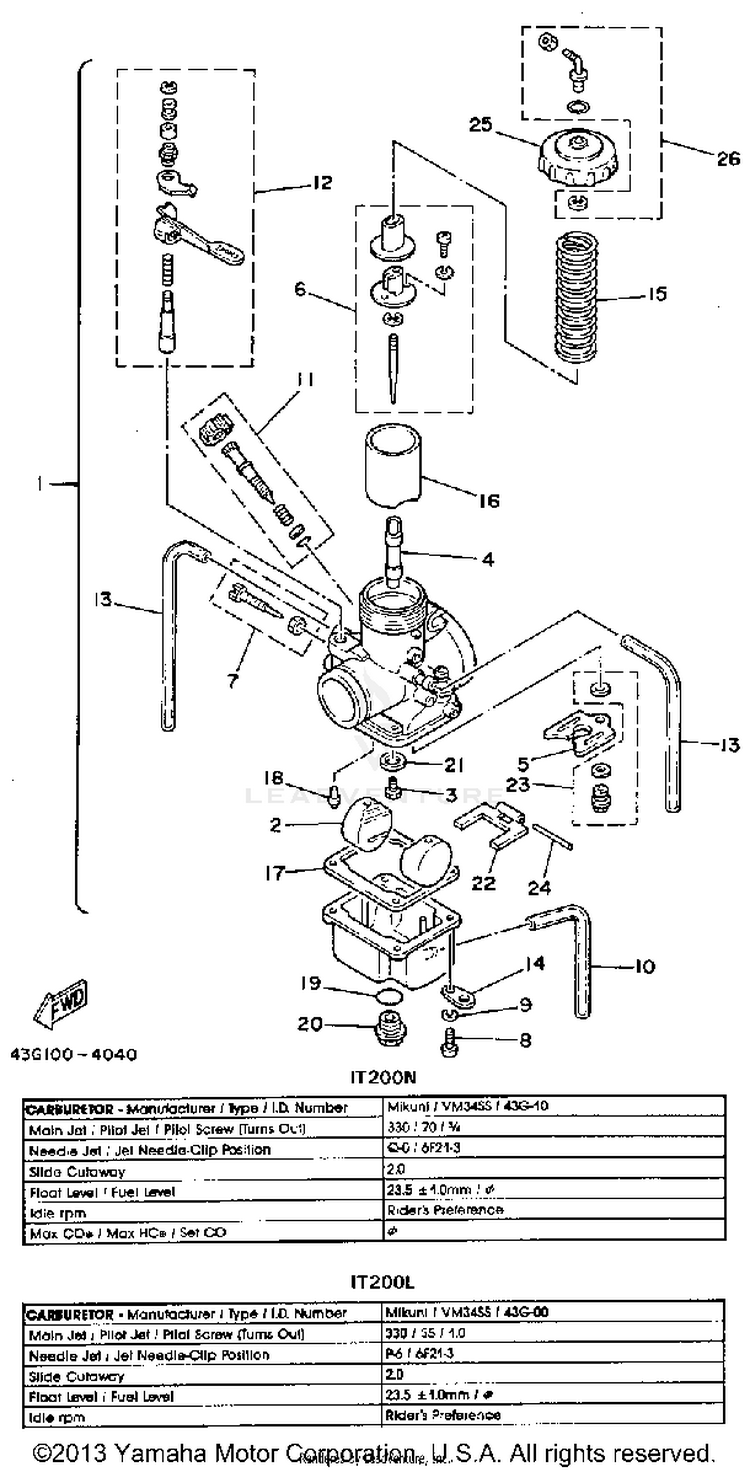

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-239-14141-46-00NOZZLE, MAIN P-6 (P-6)$16.49$14.38Usually ships in 7-10 business days
-43G-14101-00-00CARBURETOR ASSEMBLY 1$139.99$109.19Usually ships in 7-10 business days
-193-14142-55-00JET, PILOT #55 (# 55)$4.55$4.10Not Shipping
143G-14101-10-00CARBURETOR ASSEMBLY$335.99$262.07Not Shipping
2310-14185-00-00FLOAT$47.99$39.35Not Shipping
3137-14143-66-A1JET, MAIN (#330)$10.49$8.186 In-Stock
4239-14141-50-00NOZZLE, MAIN Q-0$18.90$15.50Not Shipping
5483-14146-00-00PLATE$22.99$18.85Not Shipping
624X-1490J-00-00NEEDLE SET$11.20$9.83Not Shipping
740T-14103-00-00

(replaces part #
24X-14103-00-00)

THROTTLE SCREW SET$18.99$14.814 In-Stock
897885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
992990-05100-00WASHER, SPRING-$0.8310+ In-Stock
102J2-14196-00-00PIPE$38.99$30.413 In-Stock
1143G-14104-00-00AIR SCREW SET (2X3-14123-00)$8.99$8.09Not Shipping
1243G-1410A-00-00STARTER SET$50.99$39.77Not Shipping
1389A-14987-00-00

(replaces part #
310-14197-00-00)

HOSE$17.99$14.036 In-Stock
14313-14146-00-00PLATE$18.99$15.57Not Shipping
15363-14131-00-00SPRING, THROTTLE VALVE$16.49$13.52Not Shipping
165X8-14112-20-00VALVE, THROTTLE 1$95.66$74.61Not Shipping
17483-14184-00-00GASKET, FLOAT CHAMBER$24.99$19.495 In-Stock
18193-14142-70-00JET, PILOT (#70)$11.99$9.356 In-Stock
19558-14147-00-00O-RING$10.99$8.576 In-Stock
20500-14115-00-00PLUG, SCREW$32.99$25.733 In-Stock
211G8-14153-00-00WASHER, MAIN JET$12.08$9.91Not Shipping
22310-14187-00-00ARM, FLOAT$17.99$14.75Not Shipping
2324X-14107-33-00NEEDLE VALVE SET (#3.3)$55.99$43.672 In-Stock
24127-14186-00-00PIN, FLOAT$6.99$5.762 In-Stock
253R3-14158-00-00TOP, MIXING CHAMBER$73.99$57.71Not Shipping
2624X-14106-00-00CBLE AJST SCRW SETSCREW SET$44.99$36.89Not Shipping
