1984 Yamaha IT200 Clutch OEM Parts Diagram

Submodel IT200L - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

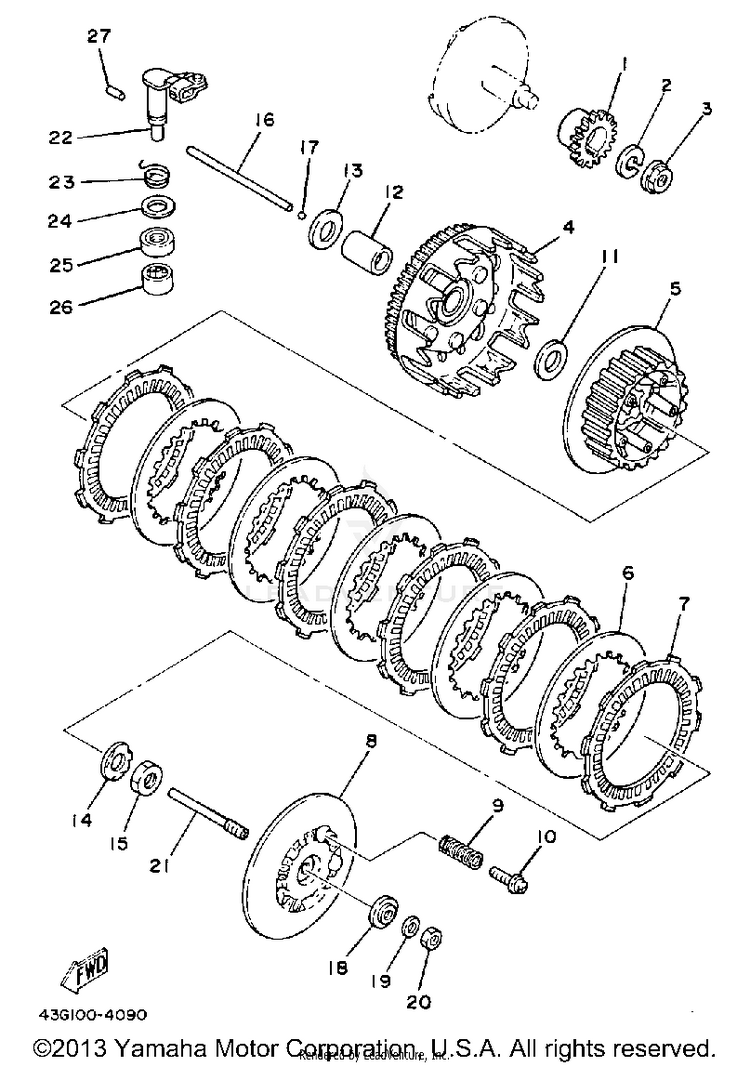

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143G-16111-00-YX

(replaces part #
43G-16111-00-00)

GEAR, PRIMARY DRIVE$47.99$39.35Not Shipping
290204-12007-00WASHER, SPRING$9.49$7.402 In-Stock
390179-12335-00NUT, SPECL SHAPE$10.49$8.183 In-Stock
443G-16150-00-00PRI DRVN GEAR$334.99$261.29Not Shipping
543G-16371-00-00BOSS, CLUTCH$112.99$88.13Not Shipping
6137-16325-80-00

(replaces part #
137-16325-70-00)

PLATE, CLUTCH 2$18.49$14.4210+ In-Stock
7537-16321-00-00PLATE, FRICTION$18.99$14.8110+ In-Stock
81W1-16351-00-00PLATE, PRESSURE 1$23.99$19.67Not Shipping
990501-20124-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
1090159-05011-00SCREW, WITH WASHER$3.80$3.278 In-Stock
1190201-174E1-00WASHER, PLATE$9.49$7.406 In-Stock
1290560-17335-00SPACER$20.99$17.21Not Shipping
1390201-174E1-00WASHER, PLATE$9.49$7.406 In-Stock
1490215-14204-00WASHER, LOCK$10.49$8.1810+ In-Stock
1590170-14171-00NUT$10.49$8.184 In-Stock
16353-16357-00-00ROD, PUSH 2$11.99$9.354 In-Stock
1793503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
181W1-16358-01-00

(replaces part #
30X-16358-00-00)

PLATE, PUSH$25.99$20.277 In-Stock
1992990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
2095380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
211W1-16356-02-00ROD, PUSH 1$18.99$14.813 In-Stock
223R3-16380-02-00PUSH LEVER ASSEMBLY$84.99$66.29Not Shipping
2390508-14426-00SPRING, TORSION$7.99$7.19Not Shipping
2490201-14217-00WASHER, PLATE$11.49$8.965 In-Stock
2593102-14308-00OIL SEAL, SD-TYPE$11.99$9.83Not Shipping
2693315-21429-00BEARING$35.99$28.076 In-Stock
2793604-16092-00PIN, DOWEL$3.45$2.979 In-Stock
