1984 Yamaha IT200 Cylinder OEM Parts Diagram

Submodel IT200L - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

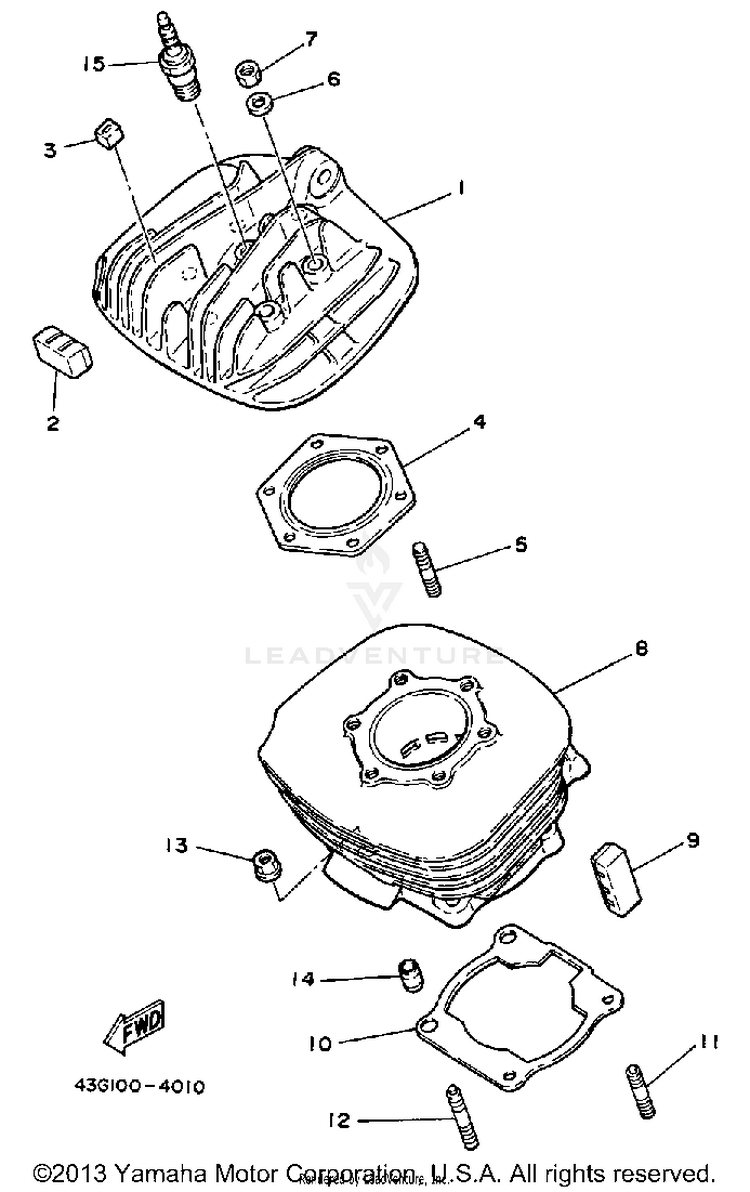

CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143G-11111-00-00HEAD, CYLINDER 1$156.99$122.45Not Shipping
23R9-11162-00-00ABSORBER 2$7.99$6.23Not Shipping
3521-11161-01-00ABSORBER 1$8.49$7.64Usually ships in 7-10 business days
443G-11181-01-00GASKET, CYLINDER HEAD 1HEAD 1$51.99$40.556 In-Stock
590116-08394-00BOLT, STUD$5.49$4.2810+ In-Stock
690201-08649-00WASHER, PLATE$10.49$8.1810+ In-Stock
795333-08600-00NUT$3.80$3.4710+ In-Stock
843G-11311-00-00CYLINDER 1$541.99$422.75Not Shipping
93R6-11162-00-00ABSORBER 2$22.99$17.9310+ In-Stock
1043G-11351-10-00

(replaces part #
43G-11351-01-00)

GSKT, CYLNDR$31.99$24.957 In-Stock
1190116-08318-00BOLT, STUD$8.49$6.6210+ In-Stock
1290116-08409-00BOLT, STUD$4.50$4.05Usually ships in 7-10 business days
1390179-08491-00

(replaces part #
90179-08246-00)

NUT$2.80$2.4110+ In-Stock
1499530-10114-00

(replaces part #
99510-10114-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
15B8E-G0000-00-00

(replaces part #
NGK-B8EG0-00-00)

B8EG NGK SPLUG 4PK | U.R. LM$4.95$4.766 In-Stock
