1984 Yamaha XT600 Electrical 1 OEM Parts Diagram

Submodel XT600LC - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

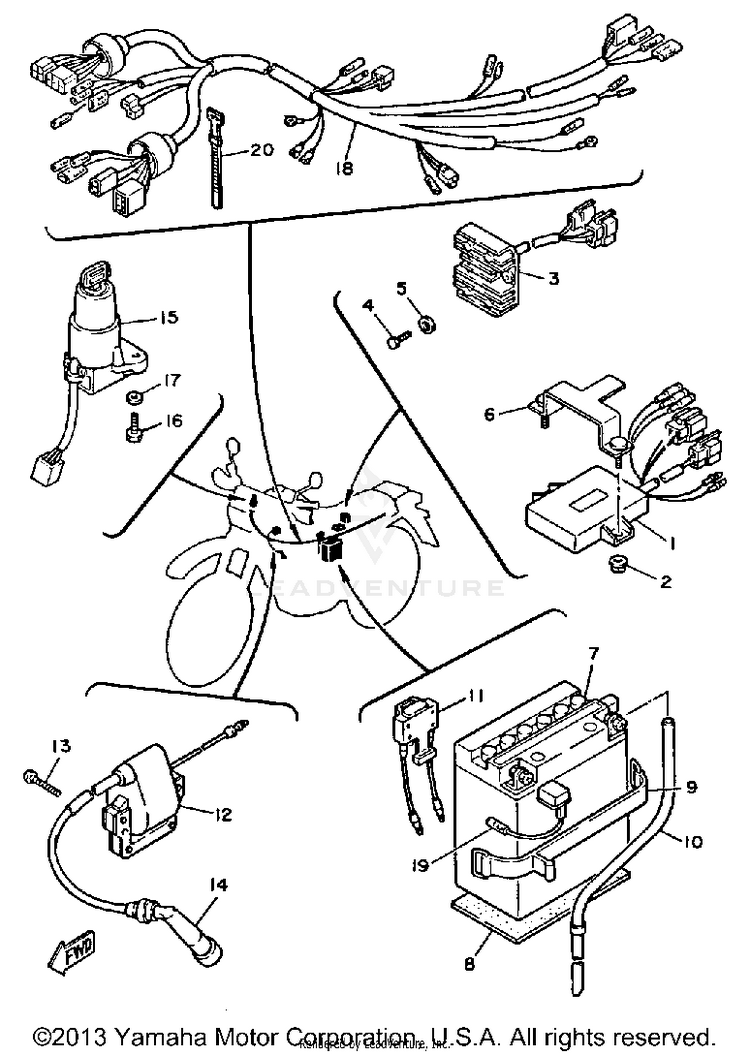

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15Y1-85540-52-00CDI UNIT ASSEMBLY$548.99$428.21Not Shipping
295780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
334L-81960-A0-00RECTIFIER/REG ASSEMBLY$264.99$206.69Not Shipping
497D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
590201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
634L-8553A-00-00STAY UNIT$8.49$7.64Not Shipping
7YB5-LB000-00-00

(replaces part #
BTG-GM4A3-B0-00)

YB5LB YUASA BATTERY$34.95$29.88Not Shipping
85Y1-82122-00-00

(replaces part #
5X2-24183-00-00)

SEAT, BATTERY$8.49$6.627 In-Stock
94J2-82131-01-00BAND, BATTERY$32.99$25.733 In-Stock
1090445-08782-00HOSE$2.77$2.49Usually ships in 7-10 business days
115Y1-82180-00-00CIRCUIT BRKR.ASSEMBLY$37.99$31.15Not Shipping
1243F-82310-51-00IGNITION COIL ASSEMBLY$122.99$95.93Not Shipping
1398580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
144VW-82370-00-00

(replaces part #
371-82370-00-00)

PLUG CAP ASSY$75.99$59.276 In-Stock
155Y1-82501-80-00MAIN SWCH STRG LCK$175.99$137.27Usually ships in 7-10 business days
1697D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1790201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1849M-82590-00-00WIRE HARNESS ASSEMBLY$86.43$67.42Usually ships in 7-10 business days
191M1-82115-00-00WIRE, PLUS LEAD$31.99$26.23Usually ships in 7-10 business days
20437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
