SEAT

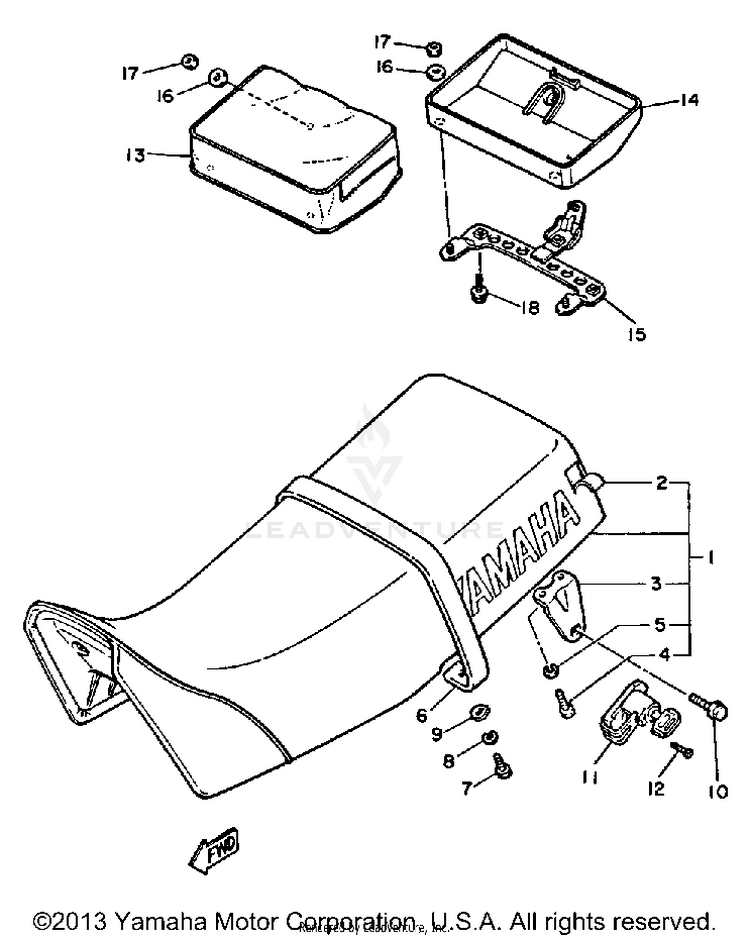

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143F-24770-10-00SEMI-DBL SEAT ASSEMBLY$231.99$180.95Not Shipping
243F-24731-00-00COVER, DOUBLE SEAT$86.44$67.42Not Shipping
343F-24738-00-00BRACKET, SEAT$8.49$7.64Usually ships in 7-10 business days
497D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
643F-24734-00-00BAND, SEAT$16.49$13.52Not Shipping
797D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
990206-06765-00WASHER, WAVE$0.50$0.45Usually ships in 7-10 business days
1095812-06010-00

(replaces part #
95811-06010-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
115H0-21308-01-00

(replaces part #
55E-21308-00-00)

HELMET HANGER ASSY$91.99$71.75Usually ships in 7-10 business days
1298707-06014-00

(replaces part #
98701-06014-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
1333G-24850-00-00CARRIER BOX ASSEMBLY$92.99$72.53Not Shipping
1433G-24833-00-00BRACKET, CARRIER 2$24.99$20.49Usually ships in 7-10 business days
1549R-24884-00-00STAY, DOCUMENT BOX$81.03$63.20Usually ships in 7-10 business days
1690201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1795380-06700-00NUT$9.49$7.404 In-Stock
1890119-06117-00

(replaces part #
90119-06042-00)

BOLT, WITH WASHER$5.49$4.284 In-Stock
