1984 Yamaha XT600 Meter OEM Parts Diagram

Submodel XT600LC - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

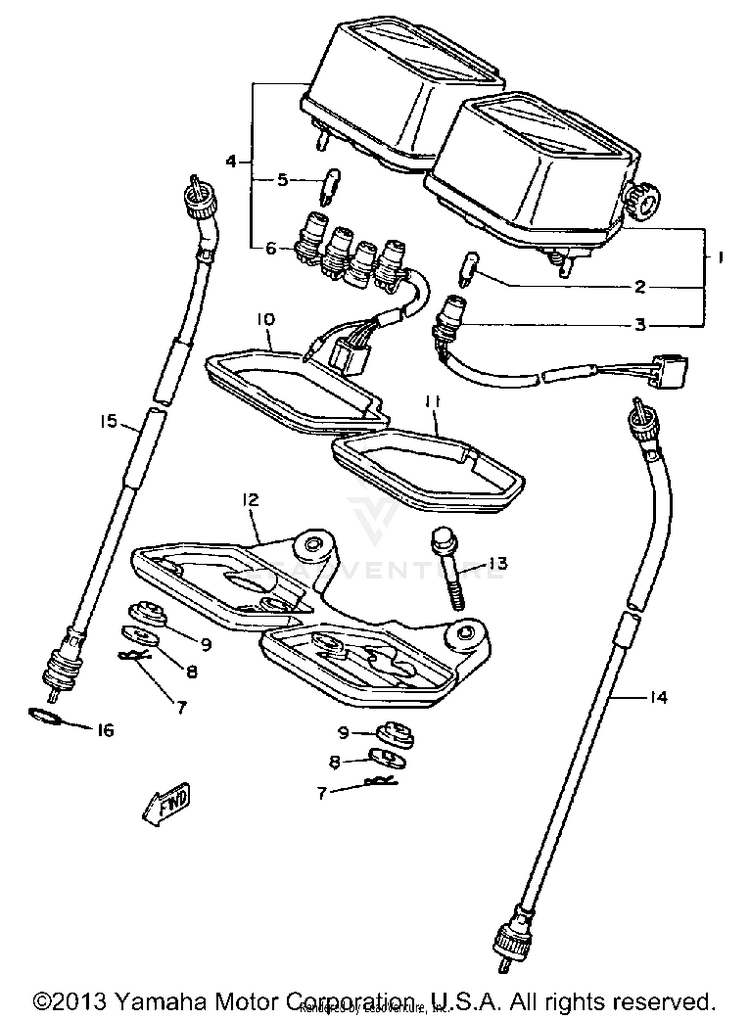

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143F-83570-G1-00SPEEDOMETER ASSEMBLY$436.99$340.85Not Shipping
24G1-84744-00-XX

(replaces part #
4G1-84744-00-00)

BULB (12V-3.4W T10)$4.80$4.32Usually ships in 7-10 business days
35E2-83509-20-00

(replaces part #
2JX-83536-A0-00)

SOCKET CORD ASSY$31.99$26.23Usually ships in 7-10 business days
42NF-83540-00-00TACHOMETER ASSEMBLY (49N-83540-$404.99$315.89Not Shipping
54G1-84744-00-XX

(replaces part #
4G1-84744-00-00)

BULB (12V-3.4W T10)$4.80$4.32Usually ships in 7-10 business days
65Y1-83520-00-00SOCKET CORD ASSEMBLY (30X-835$74.99$58.49Usually ships in 7-10 business days
790468-10050-00CLIP$3.05$2.6210+ In-Stock
890201-05033-00WASHER, SPECIAL$11.49$8.964 In-Stock
91M1-83526-01-00

(replaces part #
1M1-83526-00-00)

DAMPER 2$5.99$4.678 In-Stock
105Y1-83541-00-00DAMPER$24.99$20.49Usually ships in 7-10 business days
115Y1-83513-00-00DAMPER$36.99$28.852 In-Stock
125Y1-83519-00-00BRACKET, METER$62.99$49.13Usually ships in 7-10 business days
1395817-06040-00

(replaces part #
95816-06040-00)

BOLT, FLANGE$6.49$5.0610+ In-Stock
1416M-83550-01-00

(replaces part #
34X-83550-01-00)

SPDMTR, CABLE$45.99$37.71Usually ships in 7-10 business days
154PT-83560-01-00

(replaces part #
34L-83560-01-00)

TACHOMETER CABLE ASS$42.99$35.252 In-Stock
1693210-14579-00

(replaces part #
93210-14104-00)

O-RING$7.99$6.238 In-Stock
