1986 Yamaha TY350 Electrical 1 OEM Parts Diagram

Submodel TRIALS - TY350S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

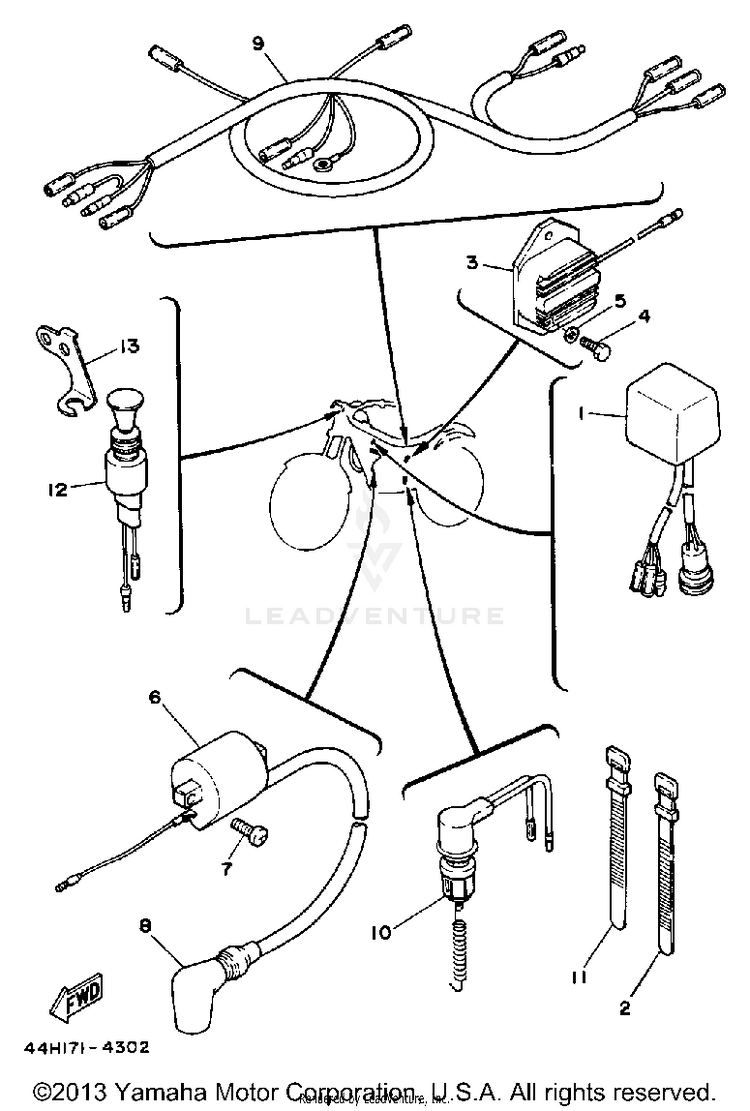

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
138V-85540-20-00CDI UNIT ASSEMBLY$179.99$140.39Usually ships in 7-10 business days
2437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
3443-81910-62-00VOLTAGE REG ASSEMBLY (498-81910$276.99$216.05Not Shipping
497017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
592990-06600-00WASHER, PLAIN (646)$2.95$2.797 In-Stock
643G-82310-40-00IGNITION COIL ASSEMBLY$139.99$109.19Not Shipping
798507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
88DG-82370-00-00

(replaces part #
81E-82370-20-00)

PLUG CAP ASSY | W/NOISE SUPPRESSOR$53.99$42.1110+ In-Stock
944H-82590-00-00WIRE HARNESS ASSEMBLY$23.26$19.07Not Shipping
105R2-82530-03-00

(replaces part #
5R2-82530-02-00)

STOP SWITCH ASSY$26.99$22.13Usually ships in 7-10 business days
11437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
124V5-82520-00-00LIGHT SWITCH ASSEMBLY$153.99$120.11Not Shipping
1344H-82527-00-00STAY, LAMP SWITCH$40.99$33.61Usually ships in 7-10 business days
