1986 Yamaha TY350 Taillight OEM Parts Diagram

Submodel TRIALS - TY350S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

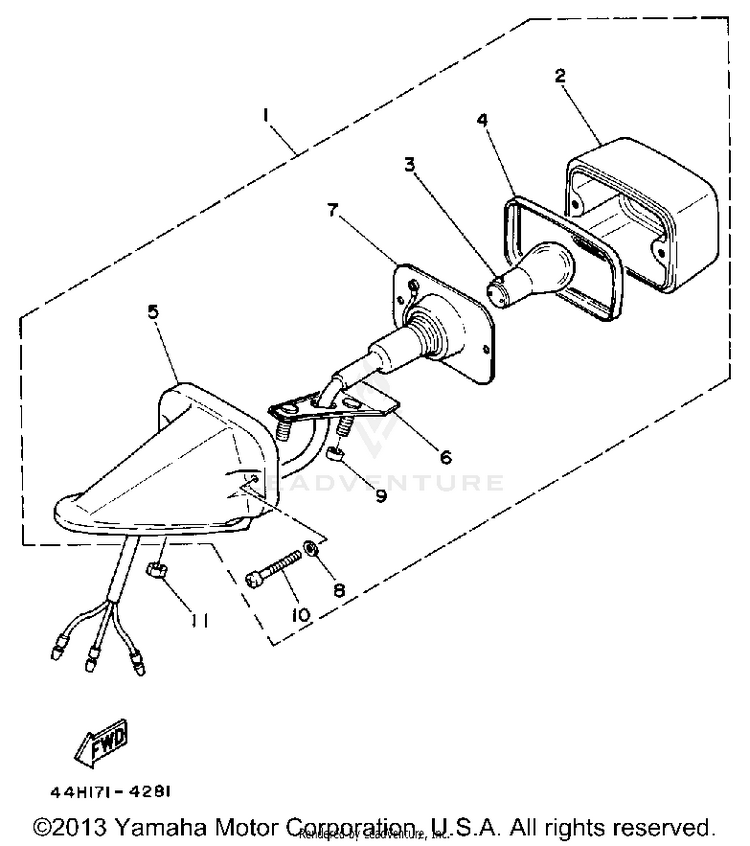

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
144H-84500-00-00TAILLIGHT ASSEMBLY$55.99$43.67Usually ships in 7-10 business days
2434-84521-69-00LENS, TAILLIGHT$39.99$32.79Usually ships in 7-10 business days
3122-84514-00-00BULB, TAILLP6V10/3W$5.99$5.39Usually ships in 7-10 business days
45AU-83323-01-00

(replaces part #
434-84515-61-00)

RIM,TAILLIGHT$12.99$10.65Usually ships in 7-10 business days
5434-84519-64-00BRACKET, TAILLIGHT$106.99$83.45Usually ships in 7-10 business days
6434-84500-64-00TAILLIGHT ASSEMBLY$123.99$96.71Not Shipping
744H-84517-00-00CORD, TAILLIGHT$11.17$9.16Usually ships in 7-10 business days
890201-05029-00

(replaces part #
434-84522-62-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
9434-84557-60-00COLLAR$2.30$2.07Not Shipping
10434-84524-62-00SCREW, LENS FITTING$1.18$1.06Usually ships in 7-10 business days
1195380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
