1986 Yamaha TY350 Generator OEM Parts Diagram

Submodel TRIALS - TY350S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

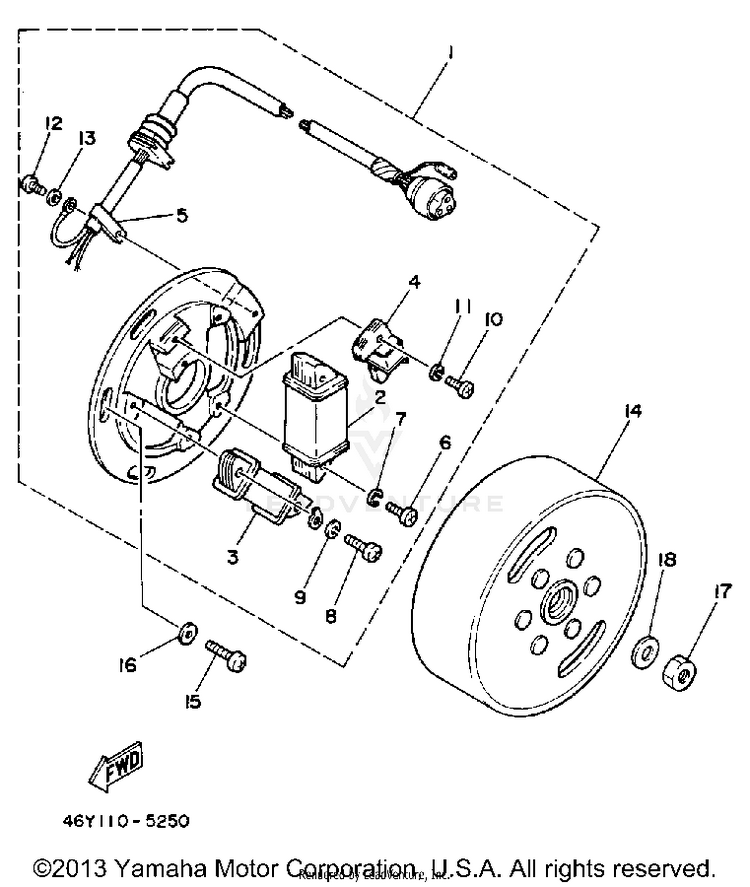

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146Y-85550-20-00ROTOR ASSEMBLY$431.99$336.95Usually ships in 7-10 business days
22X9-85512-20-00COIL SOURCE 2$178.99$139.61Usually ships in 7-10 business days
31W5-85513-20-00COIL, LIGHTING 1$48.12$39.46Usually ships in 7-10 business days
42X9-85580-20-00COIL, PULSER$134.99$105.29Not Shipping
5445-81328-20-00CLAMP$5.99$5.39Usually ships in 7-10 business days
698507-05018-00

(replaces part #
98501-05018-00)

SCREW, PAN HEAD$3.55$3.0510+ In-Stock
792990-05100-00WASHER, SPRING-$0.8310+ In-Stock
898580-05525-00

(replaces part #
98503-05025-00)

SCREW, PAN HEAD$2.00$1.80Usually ships in 7-10 business days
992990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1098580-04014-00

(replaces part #
98503-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1192990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1298517-04006-00

(replaces part #
98511-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1392990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1446Y-85550-20-00ROTOR ASSEMBLY$431.99$336.95Usually ships in 7-10 business days
1598507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1690201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1790170-12347-00NUT, HEXAGON$11.49$8.963 In-Stock
1890201-12593-00WASHER, PLATE$10.49$8.185 In-Stock
