1987 Yamaha Virago XV535 Seat OEM Parts Diagram

Submodel VIRAGO 535 - XV535TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

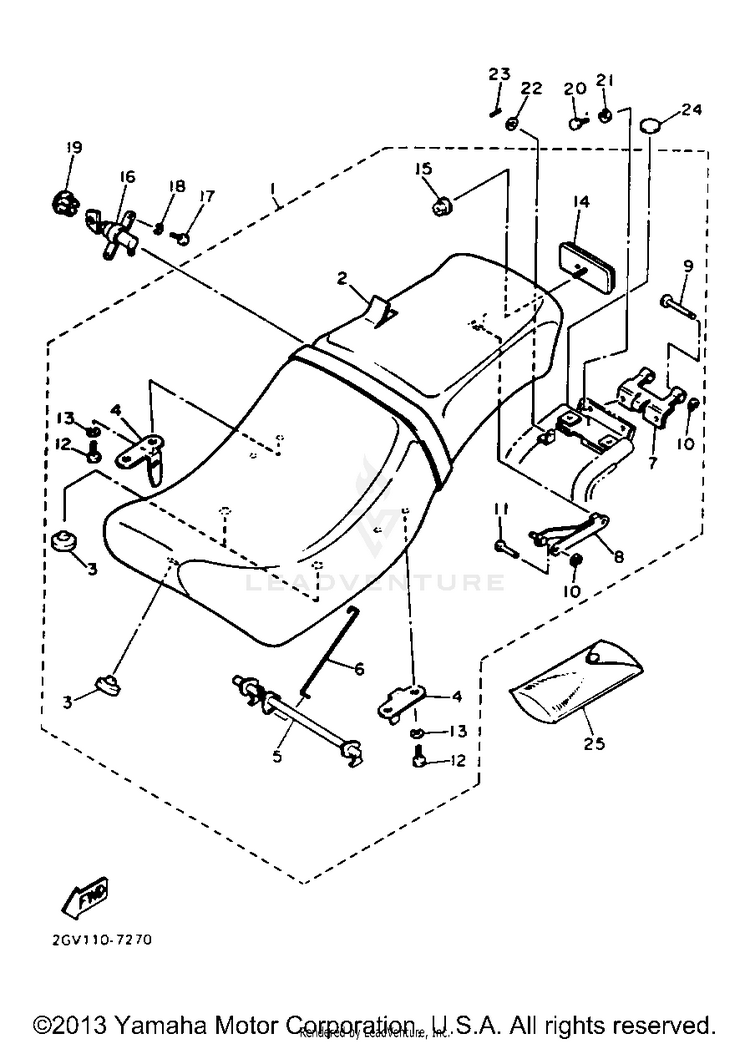

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GV-24730-00-00DOUBLE SEAT ASSEMBLY$396.99$309.65Usually ships in 7-10 business days
22GV-24731-00-00COVER, DOUBLE SEAT$109.99$85.79Usually ships in 7-10 business days
3102-27114-A0-00STOPPER, MAIN STAND$4.70$4.23Usually ships in 7-10 business days
42GV-24718-00-00BRACKET, SEAT$3.16$2.84Usually ships in 7-10 business days
52GV-24776-00-00LEVER, SEAT$46.99$38.53Usually ships in 7-10 business days
62GV-2478F-00-00ROD, CONNECTING$10.49$8.60Usually ships in 7-10 business days
72G-V2477-20-00HINGE ASSEMBLY$0.00$0.00Not Shipping
82GV-24768-00-00STOPPER$30.99$25.41Usually ships in 7-10 business days
990249-05198-00PIN, CLEVIS (2GV)$2.85$2.56Usually ships in 7-10 business days
1099080-04600-00CLIP$1.99$1.716 In-Stock
1190249-05197-00PIN, CLEVIS (2GV)$4.55$4.10Usually ships in 7-10 business days
1297D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
143Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
1595707-05500-00

(replaces part #
95701-05500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
1647X-24705-00-00

(replaces part #
51X-24705-00-00)

SEAT LOCK ASSEMBLY$87.99$68.63Usually ships in 7-10 business days
1797D95-06016-00

(replaces part #
97021-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1951Y-24796-00-00COVER$23.99$19.67Usually ships in 7-10 business days
2097017-06014-00

(replaces part #
97006-06014-00)

BOLT$9.49$7.4010+ In-Stock
2192907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
2292990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
2390468-10050-00CLIP$3.05$2.6210+ In-Stock
244A0-85547-00-00DAMPER$5.49$4.94Usually ships in 7-10 business days
252GV-28100-00-00TOOL KIT$99.99$77.99Usually ships in 7-10 business days
