1987 Yamaha Virago XV535 Starter Clutch OEM Parts Diagram

Submodel VIRAGO 535 - XV535TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

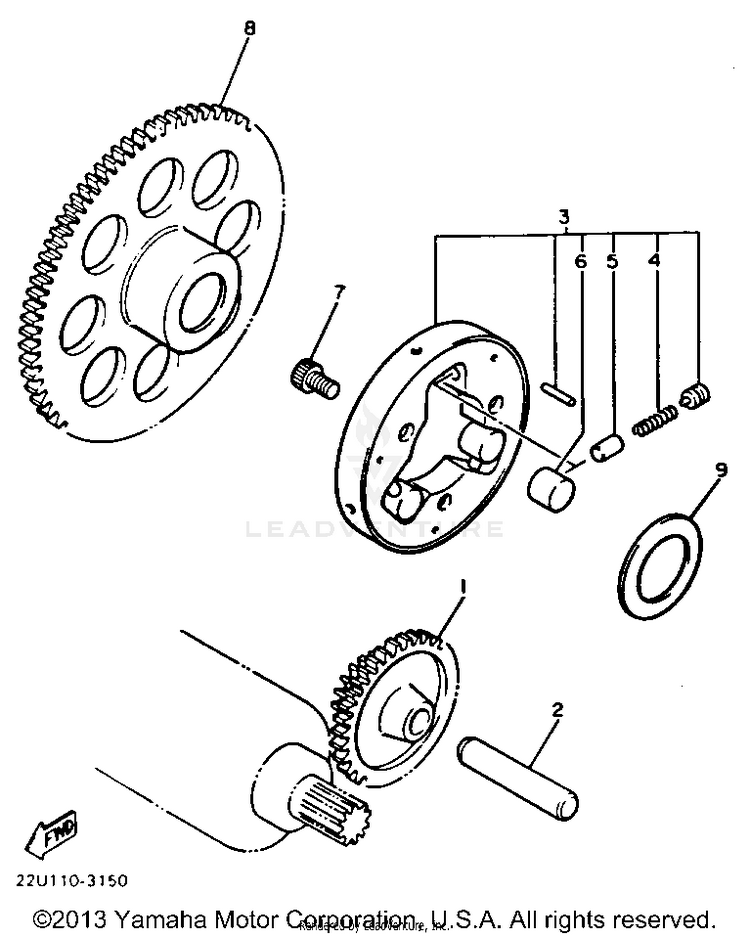

STARTER CLUTCH

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
122U-15512-00-00GEAR, IDLER 1 (12T/50T)$83.99$65.51Usually ships in 7-10 business days
25H0-15521-00-00SHAFT 1$34.99$28.69Usually ships in 7-10 business days
322U-15580-00-00STARTER CLUTCH OUTER ASSEMBLY$334.99$261.29Usually ships in 7-10 business days
490501-04623-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
51J7-15583-01-00

(replaces part #
341-15583-05-00)

CAP, STARTER CLUTCH SPRING$19.99$15.596 In-Stock
693615-12088-00PIN, DOWEL$8.49$6.627 In-Stock
791317-08012-00

(replaces part #
91316-08012-00)

BOLT$10.49$8.60Usually ships in 7-10 business days
822U-15517-00-00GEAR, IDLER 2 (66T)$200.99$156.77Usually ships in 7-10 business days
990201-256K6-00WASHER, PLATE (0.9T)$4.75$4.0810+ In-Stock
