1987 Yamaha Virago XV535 Transmission OEM Parts Diagram

Submodel VIRAGO 535 - XV535TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TRANSMISSION

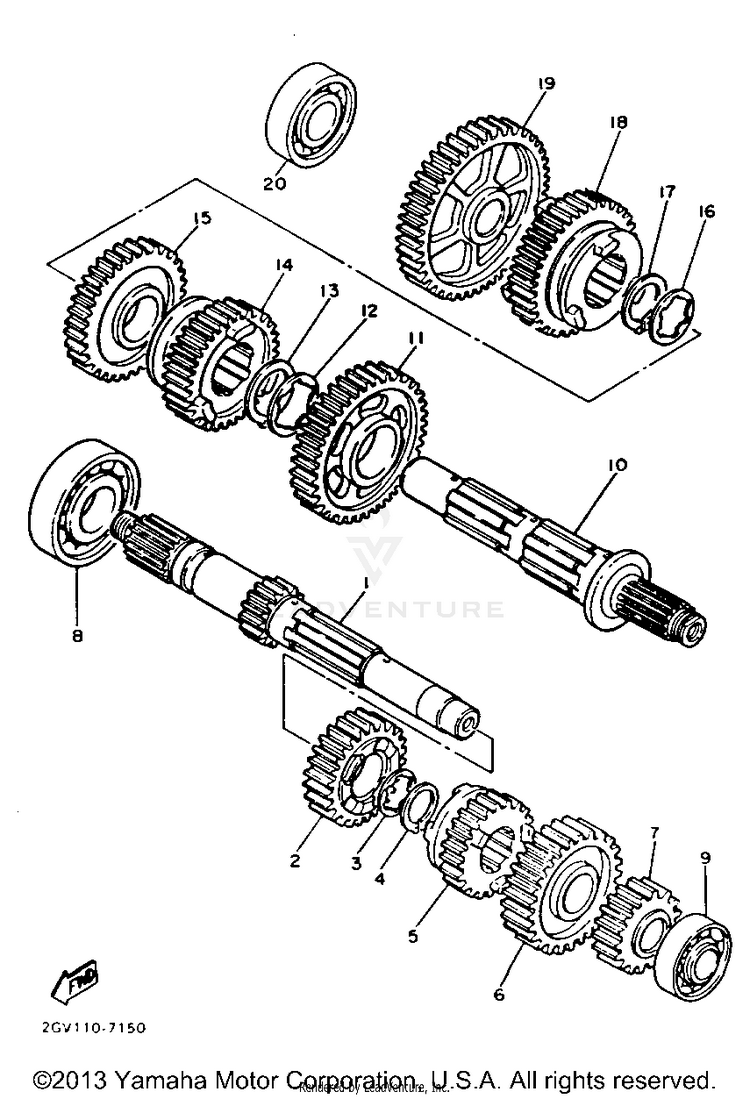

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-03117-00

(replaces part #
22U-17411-00-00)

AXLE,MAIN$174.99$136.49Usually ships in 7-10 business days
222U-17141-00-00GEAR, 4TH PINION (24T)$71.99$56.15Usually ships in 7-10 business days
390209-22191-00WASHER$8.49$7.64Usually ships in 7-10 business days
493440-25084-00CIRCLIP$4.45$4.1210+ In-Stock
522U-17131-00-00GEAR, 3RD PINION (24T)$78.99$61.61Usually ships in 7-10 business days
64VR-17151-01-00

(replaces part #
11H-17151-01-00)

GEAR, 5TH PINION (30T)$106.99$83.45Usually ships in 7-10 business days
74KU-17121-00-00

(replaces part #
11H-17121-00-00)

GEAR, 2ND PINION (20T)$58.99$46.01Usually ships in 7-10 business days
893306-30525-00BEARING$69.99$54.594 In-Stock
993306-00426-00BEARING$46.99$36.6510+ In-Stock
1022U-17402-00-00DRIVE AXLE ASSY$82.99$64.73Usually ships in 7-10 business days
114KU-17221-00-00

(replaces part #
22U-17221-00-00)

GEAR, 2ND WHEEL (38T)$89.99$70.19Usually ships in 7-10 business days
1290209-27192-00WASHER$9.49$8.54Usually ships in 7-10 business days
1393440-30077-00CIRCLIP$11.49$9.42Usually ships in 7-10 business days
144VR-17251-01-00

(replaces part #
11H-17251-00-00)

GEAR, 5TH WHEEL (29T)$87.99$68.63Usually ships in 7-10 business days
154KU-17231-00-00

(replaces part #
22U-17231-00-00)

GEAR, 3RD WHEEL (35T$68.99$53.81Usually ships in 7-10 business days
1690209-22191-00WASHER$8.49$7.64Usually ships in 7-10 business days
1793440-25084-00CIRCLIP$4.45$4.1210+ In-Stock
1822U-17241-00-00GEAR, 4TH WHEEL (28T)$74.99$58.49Usually ships in 7-10 business days
1922U-17211-00-00GEAR, 1ST WHEEL (38T)$106.99$83.45Usually ships in 7-10 business days
2093306-00427-00

(replaces part #
93306-00428-00)

BEARING$32.99$25.73Not Shipping
