1990 Yamaha RT180 Handle Switch - Lever OEM Parts Diagram

Submodel RT180A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH - LEVER

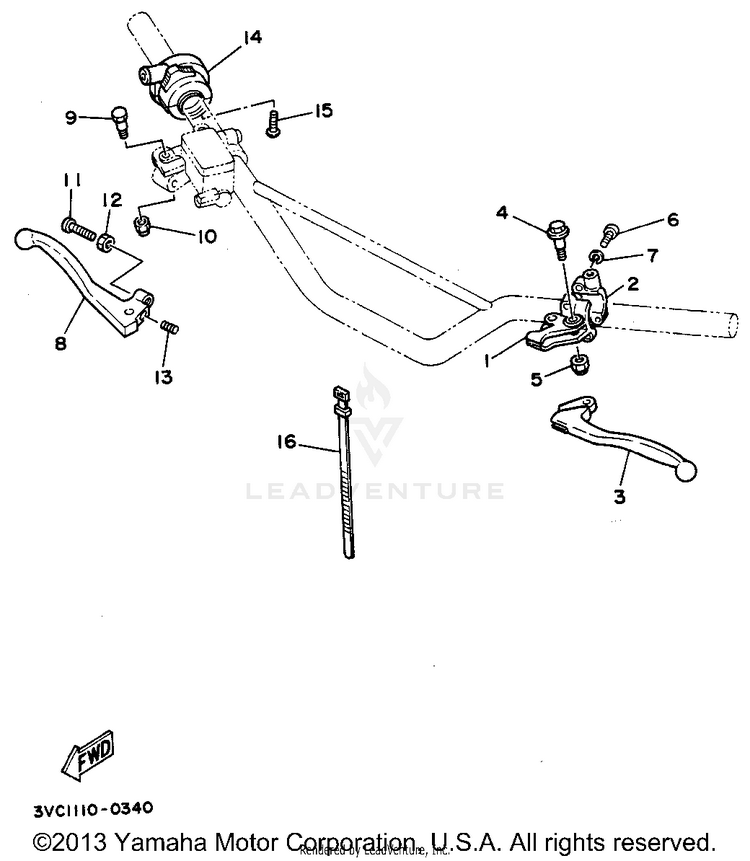

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12TY-H2911-00-00HOLDER, LEVER 1$25.99$20.277 In-Stock
22TY-H2915-02-00

(replaces part #
2TY-H2915-01-00)

HOLDER, LEVER 1$19.99$16.39Usually ships in 7-10 business days
33FY-83912-02-00

(replaces part #
35N-H3912-00-00)

LEVER 1$31.99$24.954 In-Stock
45L9-H3945-01-00BOLT, LEVER$1.55$1.40Usually ships in 7-10 business days
590185-06800-00

(replaces part #
90185-06800-09)

NUT, SELF-LOCKING$2.80$2.52Usually ships in 7-10 business days
698517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
792907-05100-00

(replaces part #
92906-05100-00)

WASHER, SPRING$9.49$7.706 In-Stock
82TY-H3922-00-00LEVER 2$53.99$42.11Not Shipping
990109-062A8-00

(replaces part #
90109-06774-00)

BOLT$8.49$6.622 In-Stock
1090185-06800-00

(replaces part #
90185-06800-09)

NUT, SELF-LOCKING$2.80$2.52Usually ships in 7-10 business days
1190154-06802-00

(replaces part #
90154-06802-09)

SCREW, BINDING$2.30$2.07Usually ships in 7-10 business days
1290170-06010-00NUT$9.49$7.404 In-Stock
1390501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
141R6-83976-01-00

(replaces part #
23K-H3976-00-00)

SWITCH, HANDLE 1$72.99$56.933 In-Stock
1590157-05057-00

(replaces part #
98502-08022-09)

SCREW, PAN HEAD$3.85$3.463 In-Stock
165L9-H3936-00-00BAND, SWITCH CORD$0.85$0.76Usually ships in 7-10 business days
