1990 Yamaha RT180 Shift Cam - Shift Fork OEM Parts Diagram

Submodel RT180A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

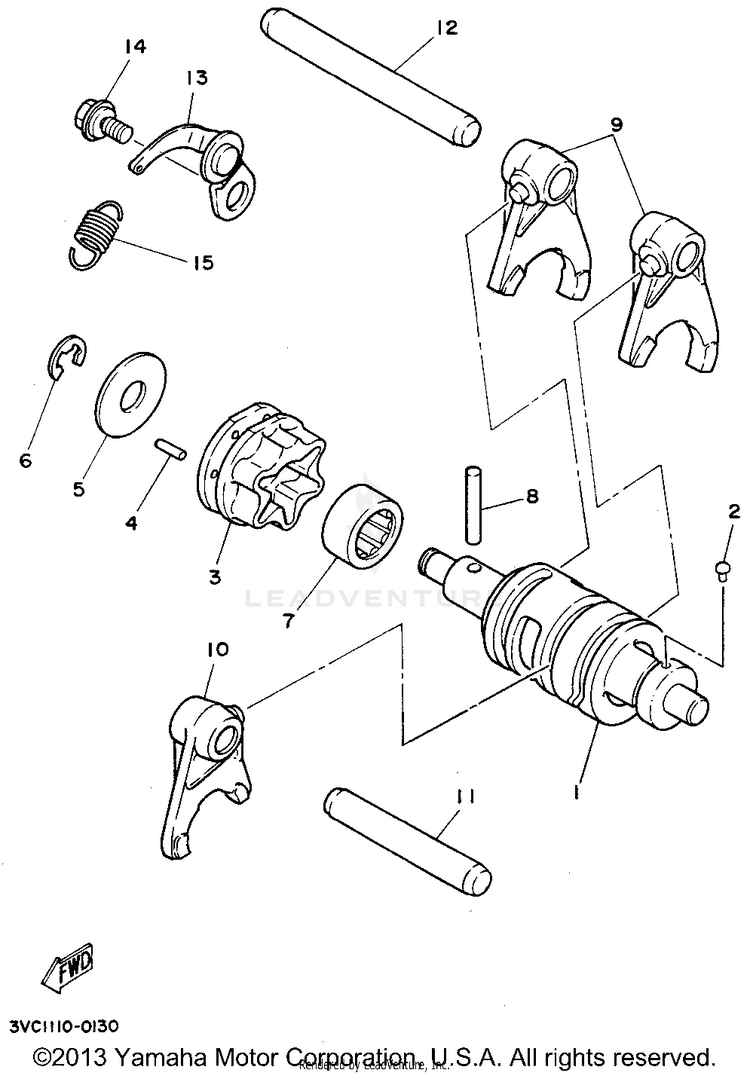

SHIFT CAM - SHIFT FORK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11W1-18540-00-00

(replaces part #
23K-E8541-00-00)

SHIFT CAM ASSEMBLY$106.99$83.45Usually ships in 7-10 business days
22H3-E8542-00-00POINT, NEUTRAL$0.75$0.68Usually ships in 7-10 business days
35L9-E8185-00-00SEGMENT$28.99$23.77Usually ships in 7-10 business days
493604-12803-00

(replaces part #
93604-12803-09)

PIN,DOWEL$3.25$2.92Usually ships in 7-10 business days
55L9-E8561-01-00

(replaces part #
5L9-E8561-00-00)

PLATE,SIDE 1$1.45$1.30Usually ships in 7-10 business days
699001-08600-00CIRCLIP$9.49$7.405 In-Stock
793315-21813-00BEARING$39.99$31.1910+ In-Stock
893604-30802-00

(replaces part #
93604-30802-09)

PIN,DOWEL$3.95$3.56Usually ships in 7-10 business days
92A6-18511-00-00FORK, SHIFT 1$38.99$31.97Usually ships in 7-10 business days
102A6-18512-00-00FORK, SHIFT 2$39.99$32.79Usually ships in 7-10 business days
115L9-E8531-00-00BAR, SHIFT FORK GUIDE 1$13.99$11.47Usually ships in 7-10 business days
125L9-E8535-00-00BAR, SHIFT FORK GUIDE 2$12.49$10.24Usually ships in 7-10 business days
135L9-E8140-00-00STOPPER LEVER ASSEMBLY$10.49$8.60Usually ships in 7-10 business days
145L9-E8177-00-00BOLT, STOPPER$1.15$1.04Not Shipping
1590506-09156-00SPRING, TENSION$8.49$7.64Usually ships in 7-10 business days
