1990 Yamaha RT180 Stand - Footrest OEM Parts Diagram

Submodel RT180A - 1990

Shop Aftermarket Parts

STAND - FOOTREST

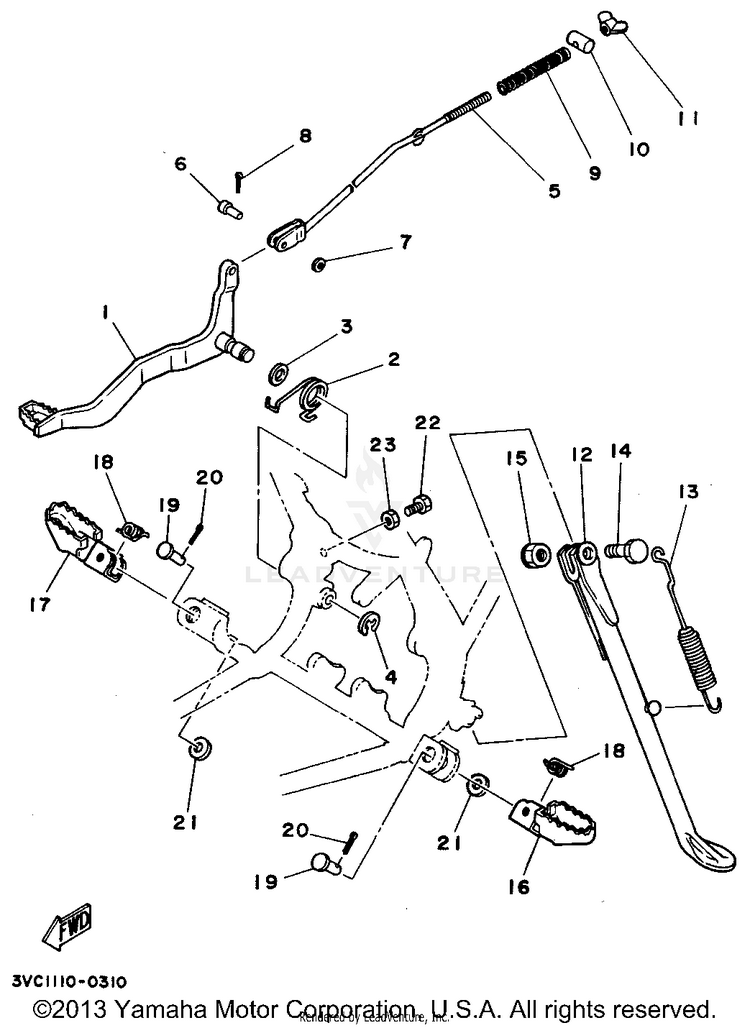

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15L9-F7211-01-00PEDAL, BRAKE$57.99$45.23Usually ships in 7-10 business days
290508-32354-00SPRING, TORSION$9.49$8.54Usually ships in 7-10 business days
390201-14212-00WASHER, PLATE$9.49$7.403 In-Stock
499006-10600-00

(replaces part #
93430-10801-09)

CIRCLIP$10.49$8.1810+ In-Stock
55L9-F7231-01-00

(replaces part #
5L9-F7231-00-00)

ROD, BRKE$15.49$12.70Not Shipping
690240-06006-00PIN, CLEVIS$10.49$8.185 In-Stock
792990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
891490-25020-00

(replaces part #
91402-25012-09)

PIN. COTTER$3.45$2.9710+ In-Stock
990501-10W00-00

(replaces part #
90501-10801-09)

SPRING, COMPRESSION$2.75$2.486 In-Stock
1090249-12008-00

(replaces part #
90249-12800-09)

PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
1190179-06W03-00

(replaces part #
90179-06801-09)

NUT,SPEC'L SHAPE$2.87$2.58Usually ships in 7-10 business days
122TW-F7311-00-00STAND, SIDE$82.99$64.73Usually ships in 7-10 business days
1390507-29008-00SPRING, TENSION$31.99$24.953 In-Stock
1490109-10W14-00

(replaces part #
90109-10622-09)

BOLT$1.90$1.71Not Shipping
1590185-10060-00NUT, SELF-LOCKING$8.49$6.6210+ In-Stock
1622W-27411-01-90FOOTREST 1$35.99$28.071 In-Stock
1722W-27421-01-90FOOTREST 2 (3R1-27421-00)$35.99$28.076 In-Stock
1890508-20023-00SPRING, TORSION$4.25$3.6610+ In-Stock
1991701-08038-00

(replaces part #
91702-08038-09)

PIN$4.45$3.8310+ In-Stock
2091490-25020-00

(replaces part #
91402-25012-09)

PIN. COTTER$3.45$2.9710+ In-Stock
2190201-08085-00WASHER, PLATE$10.49$8.189 In-Stock
2297024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
2395380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
