1990 Yamaha YZ80 Crankcase OEM Parts Diagram

Submodel YZ80A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

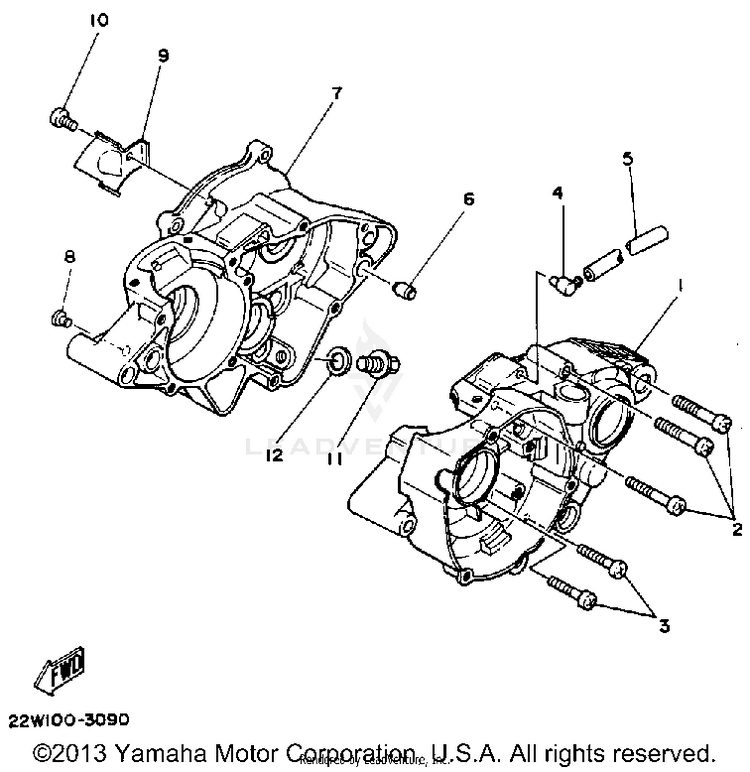

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12VE-15111-00-00CRANKCASE 1$401.99$313.55Usually ships in 7-10 business days
298580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
397885-06035-00

(replaces part #
98580-06035-00)

SCREW, PAN HEAD$6.49$5.119 In-Stock
4353-13115-01-00CONNECTOR, SUCTION PIPE$7.49$5.8410+ In-Stock
590445-08684-00

(replaces part #
90445-08376-00)

HOSE$5.49$4.2810+ In-Stock
699530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
72VE-15121-00-00CRANKCASE 2$157.99$123.23Usually ships in 7-10 business days
890338-07124-00

(replaces part #
90338-07011-00)

PLUG$11.49$8.963 In-Stock
95X2-15113-01-00PLATE$14.99$12.29Usually ships in 7-10 business days
1097885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1190340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
1290430-12207-00GASKET$8.49$6.6210+ In-Stock
