1990 Yamaha YZ80 Radiator-Hose OEM Parts Diagram

Submodel YZ80A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

RADIATOR-HOSE

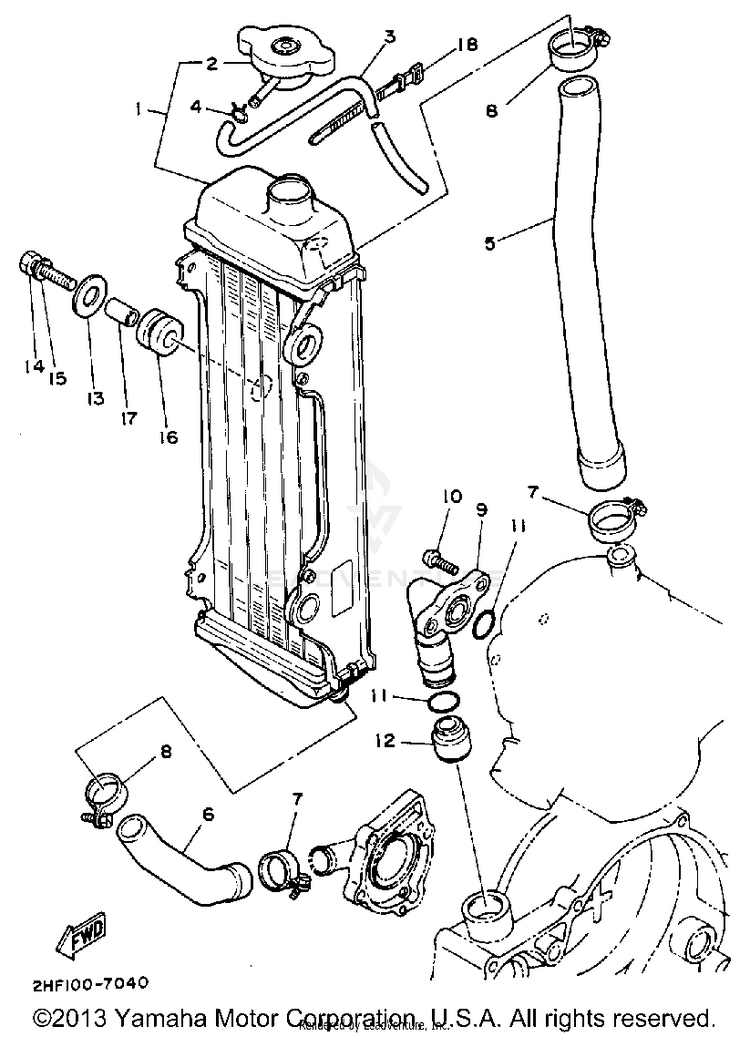

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HF-12460-00-00RADIATOR ASSEMBLY$418.99$326.81Usually ships in 7-10 business days
24FL-12462-00-00

(replaces part #
22W-12462-00-00)

CAP, RADIATOR$68.99$53.8110+ In-Stock
322W-12463-00-00PIPE, BREATHER$22.99$17.933 In-Stock
490467-08004-00CLIP$9.49$7.402 In-Stock
539K-12481-00-00PIPE 1$38.99$31.97Not Shipping
639K-12482-00-00PIPE 2$29.99$24.59Not Shipping
790450-28001-00

(replaces part #
90450-28014-00)

HOSE CLAMP ASSY$16.49$12.8610+ In-Stock
890450-22M14-00

(replaces part #
90450-22052-00)

HOSE CLAMP ASSY$17.49$13.6410+ In-Stock
92VE-12446-00-00JOINT$71.99$56.15Not Shipping
1098507-06016-00

(replaces part #
98506-06016-00)

SCREW,PAN HEAD$3.48$2.9910+ In-Stock
1193210-16772-00

(replaces part #
93210-16716-00)

O-RING$1.45$1.3110+ In-Stock
124V2-12494-00-00SEAL, PIPE 1$19.99$16.39Not Shipping
1390201-06086-00

(replaces part #
90201-06073-00)

WASHER, PLATE$8.49$7.0110+ In-Stock
1497017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1690480-15064-00GROMMET$10.49$8.188 In-Stock
1790387-061V1-00

(replaces part #
90387-074W0-00)

COLLAR (2UJ)$9.49$7.404 In-Stock
18437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
