1990 Yamaha YZ80 Front Wheel OEM Parts Diagram

Submodel YZ80A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

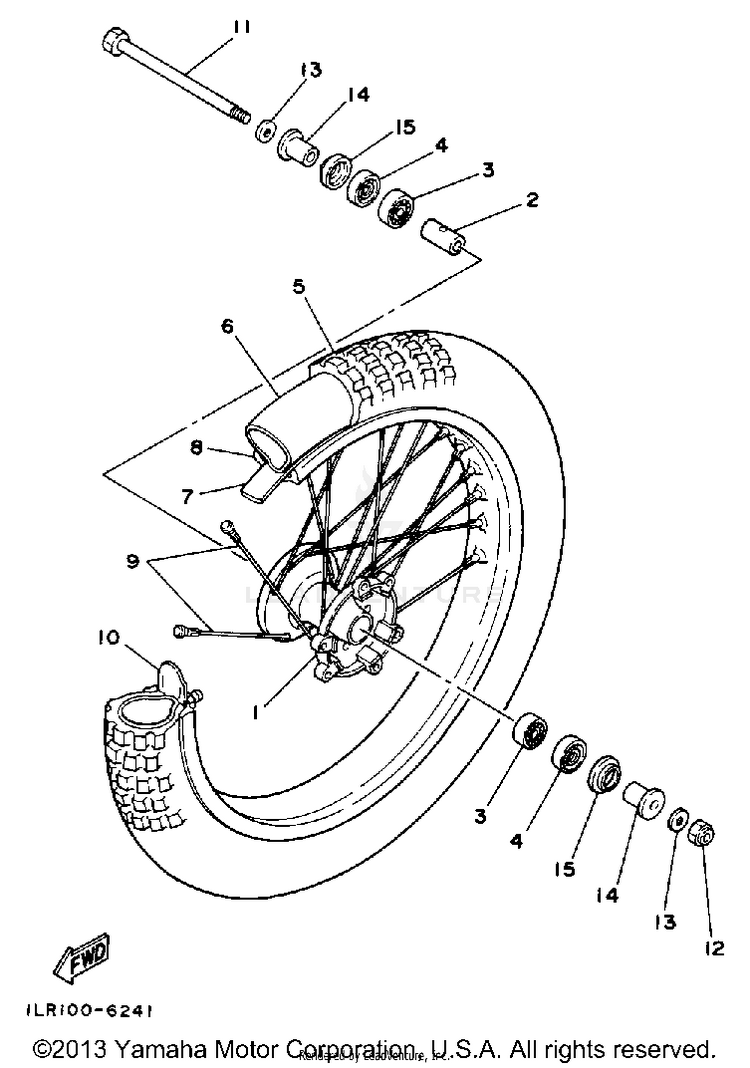

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11LR-25111-00-98HUB, FRONT | LOW GLOSS BLK$152.99$119.33Usually ships in 7-10 business days
290560-12257-00SPACER$19.49$15.201 In-Stock
393306-00105-00BEARING$33.99$26.5110+ In-Stock
493106-18013-00OIL SEAL$12.49$9.742 In-Stock
594107-177R6-0070/100-17 M6A IRC (70/100-17) | INOUE$41.51$36.42Usually ships in 7-10 business days
694208-17255-00TUBE 80/80-17 (80/80-17) | INOUE$8.99$8.09Usually ships in 7-10 business days
794332-17112-00BAND, RIM (2.75-17) | INOUE$10.49$8.60Usually ships in 7-10 business days
894414-17428-00RIM 1.4 (1.40-17)$257.99$201.70Usually ships in 7-10 business days
91LR-25104-00-00SPOKE SET, FRONT$73.99$57.71Not Shipping
101T1-25194-00-00SPACER, BEAD$68.99$53.81Usually ships in 7-10 business days
1122W-25181-01-00AXLE, WHEEL$37.99$29.633 In-Stock
1290185-12134-00

(replaces part #
90185-12046-00)

NUT, SELF-LOCKING$13.49$10.524 In-Stock
1390201-12047-00

(replaces part #
90201-122A7-00)

WASHER, PLATE$9.49$7.404 In-Stock
1490387-126F8-00COLLAR$23.99$18.715 In-Stock
15462-25118-00-00COVER, HUB DUST$17.99$14.03Not Shipping
