1991 Yamaha WARRIOR 350 Frame OEM Parts Diagram

Submodel WARRIOR - YFM350XB - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

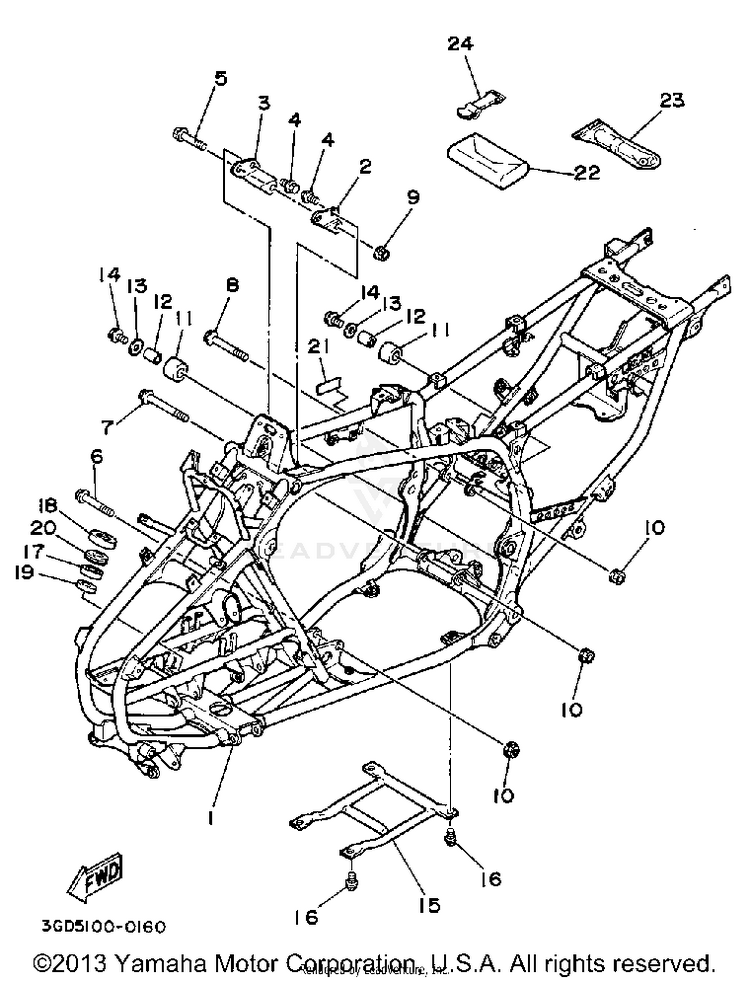

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GD-21110-23-P0

(replaces part #
3GD-21110-21-35)

FRAME COMP. | SILVER$1,331.99$1,075.76Usually ships in 7-10 business days
21UY-21315-00-00STAY, ENGINE 2$26.99$21.05
31UY-21316-00-00STAY, ENGINE 3$34.99$27.293 In-Stock
495817-08012-00

(replaces part #
95811-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
595817-08055-00

(replaces part #
95811-08055-00)

BOLT, FLANGE$4.21$3.6210+ In-Stock
690105-10323-00BOLT, FLANGE$6.49$5.063 In-Stock
790105-10409-00BOLT, FLANGE$11.49$8.9610+ In-Stock
890105-10480-00BOLT, FLANGE$9.49$7.403 In-Stock
990185-08169-00

(replaces part #
90179-08577-00)

NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
1090185-10170-00

(replaces part #
95601-10200-00)

NUT, SELF-LOCKING$10.49$8.187 In-Stock
1130X-22178-00-00TENSIONER$38.99$30.4110+ In-Stock
124V4-22184-00-00BUSH$4.80$4.1310+ In-Stock
1390201-081R9-00

(replaces part #
90201-08753-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1495817-08012-00

(replaces part #
95811-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
151UY-21471-00-00PROTECTOR, ENGINE$123.99$96.71Usually ships in 7-10 business days
1695817-08012-00

(replaces part #
95811-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1793306-20348-00

(replaces part #
93306-20331-00)

BEARING$44.99$35.098 In-Stock
AFTERMARKET ALTERNATIVE
$14.99$12.9910+ In-Stock
1893102-25081-00OIL SEAL$6.49$5.0610+ In-Stock
1993102-25099-00OIL SEAL$14.49$11.3010+ In-Stock
202GU-23872-00-00HOLDER, BEARING$28.99$22.6110+ In-Stock
211UY-26137-00-00LABEL$7.99$7.19Not Shipping
2259V-28100-00-00TOOL KIT (24W-28100-00)$42.99$35.25Usually ships in 7-10 business days
231NV-2811A-01-00

(replaces part #
1NV-2811A-00-00)

GAUGE, AIR$62.99$49.133 In-Stock
2421V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
