1991 Yamaha WARRIOR 350 Rear Master Cylinder OEM Parts Diagram

Submodel WARRIOR - YFM350XB - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

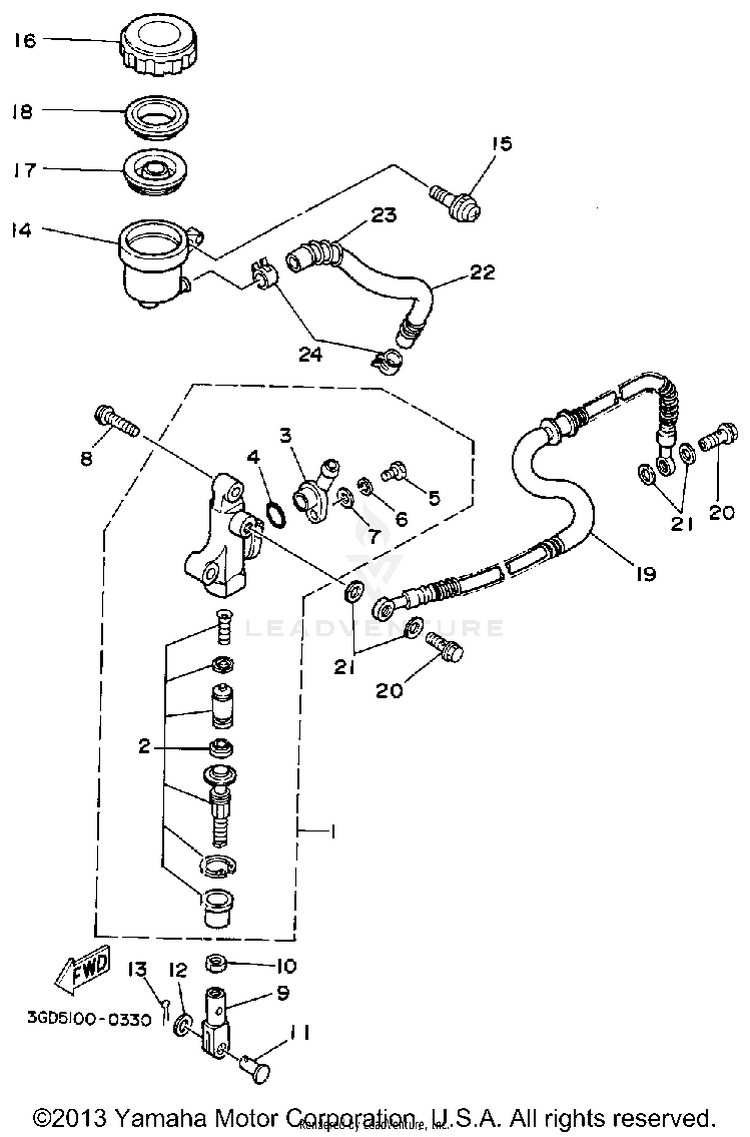

REAR MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GD-2583V-00-00MASTER CYLINDER ASSEMBLY.$143.99$112.31Not Shipping
23GD-W0042-00-00CYLINDER KIT, MASTER$82.99$64.73Not Shipping
329L-2582A-50-00JOINT$87.99$68.63Usually ships in 7-10 business days
493210-15566-00

(replaces part #
93210-15620-00)

O-RING$8.49$6.6210+ In-Stock
598517-04012-00

(replaces part #
98511-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
692990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
792990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
892017-08030-00

(replaces part #
92016-08030-00)

BOLT, BUTTON HEAD$10.49$8.182 In-Stock
931A-27222-00-00JOINT$47.99$39.35Usually ships in 7-10 business days
1095380-08700-00

(replaces part #
95303-08700-00)

NUT-$3.796 In-Stock
1190240-08013-00PIN, CLEVIS$9.49$7.401 In-Stock
1290201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1391490-16020-00PIN, COTTER$6.99$5.456 In-Stock
1447X-25894-00-00TANK, RESERVOIR$43.99$34.316 In-Stock
1590159-06056-00SCREW, WITH WASHER$9.49$7.406 In-Stock
162KF-25852-50-00CAP, RESERVOIR$51.99$40.554 In-Stock
17360-25854-01-00

(replaces part #
360-25854-00-00)

DIAPHRAGM, RESERVOIR$25.99$20.274 In-Stock
182GU-25855-00-00BUSH, DIAPHRAGM$33.99$26.511 In-Stock
1999999-02415-00

(replaces part #
3GD-25874-00-00)

BRAKE HOSE SET (3GD) (3GD-25874$102.99$80.33Usually ships in 7-10 business days
2090401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
2190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
221UY-25895-00-00HOSE, RESERVOIR$27.99$22.95Usually ships in 7-10 business days
2390501-102E8-00SPRING, COMPRESSION$10.49$8.60Not Shipping
2490467-14057-00CLIP$9.49$7.403 In-Stock
