1991 Yamaha WARRIOR 350 Generator OEM Parts Diagram

Submodel WARRIOR - YFM350XB - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

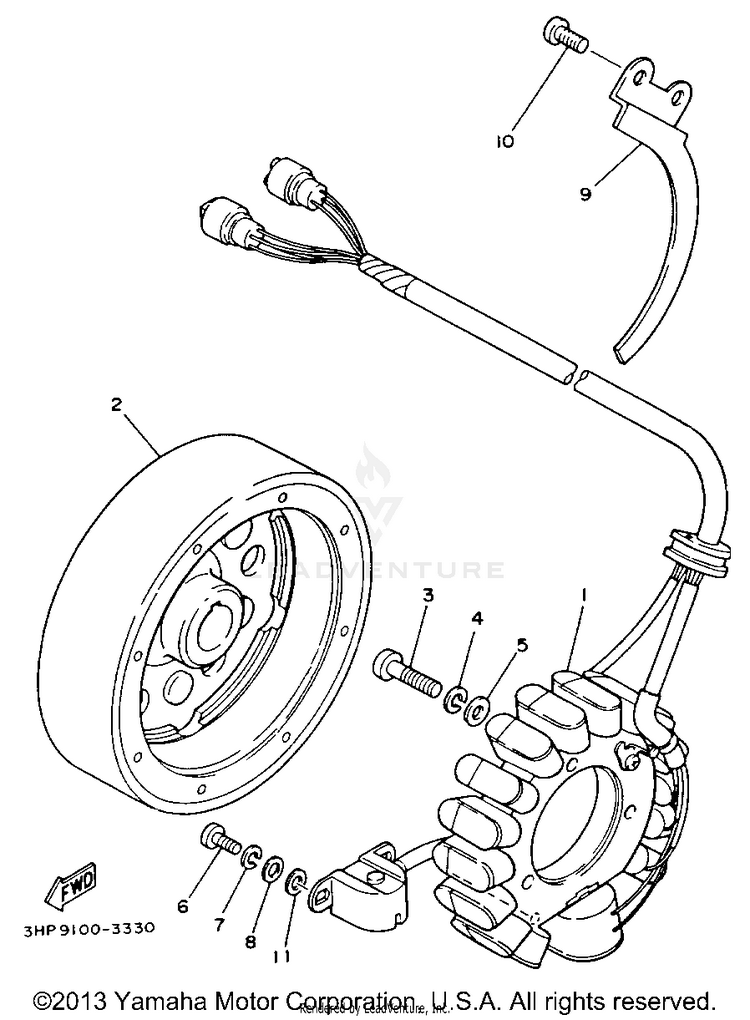

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HN-85510-00-00STATOR ASSEMBLY$774.17$603.85Usually ships in 7-10 business days
23HN-85550-01-00

(replaces part #
3HN-85550-00-00)

ROTOR ASSY$626.99$489.05Usually ships in 7-10 business days
397885-06030-00

(replaces part #
98501-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
592990-06600-00WASHER, PLAIN (646)$2.95$2.797 In-Stock
698507-05016-00

(replaces part #
98501-05016-00)

SCREW, WITH WASHER$1.80$1.5510+ In-Stock
792990-05100-00WASHER, SPRING-$0.8310+ In-Stock
892990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
91UY-81175-01-00STOPPER 1$28.99$23.77Usually ships in 7-10 business days
