1992 Yamaha XT600 Cylinder OEM Parts Diagram

Submodel XT600EDC - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

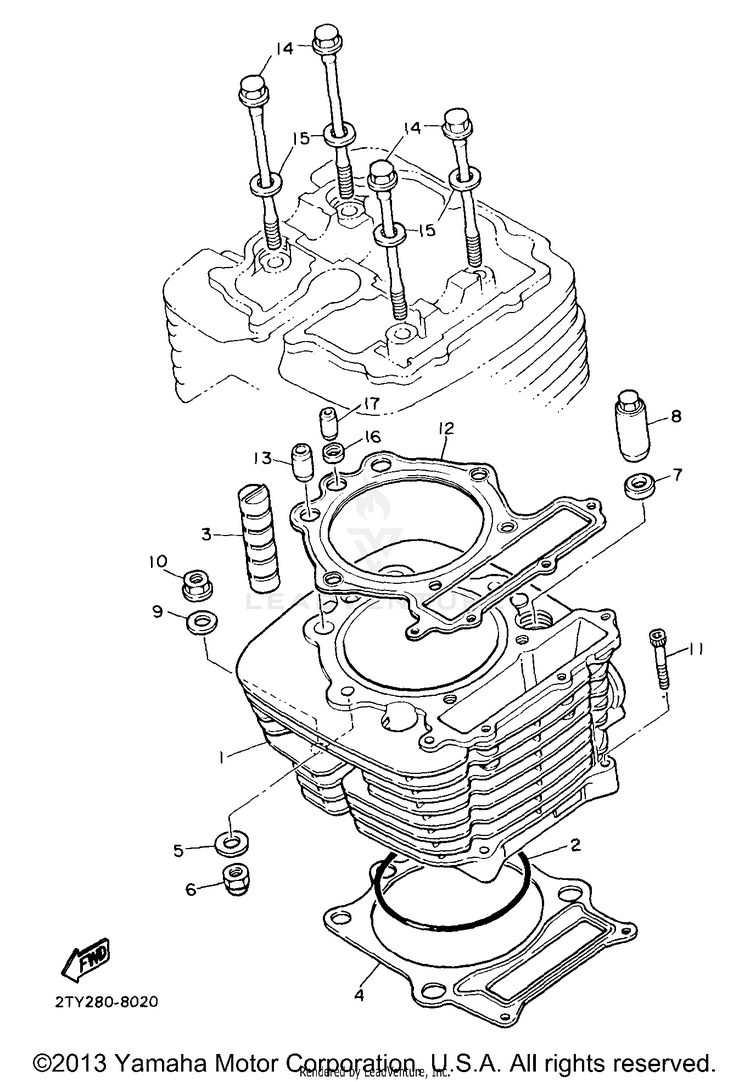

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13TB-11310-00-00CYLINDER$703.99$549.11Not Shipping
293210-97524-00O-RING$18.49$14.424 In-Stock
3583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
41VJ-11351-00-00GASKET, CYLINDER$31.99$24.954 In-Stock
590201-080L8-00WASHER, PLATE$3.65$3.4510+ In-Stock
690176-08026-00NUT, CROWN$16.49$12.8610+ In-Stock
790201-10590-00WASHER, PLATE$6.49$5.065 In-Stock
890179-10021-00

(replaces part #
90179-10201-00)

NUT$28.99$22.616 In-Stock
990201-10124-00WASHER, PLATE$10.49$8.188 In-Stock
1090179-10279-00NUT$9.49$7.404 In-Stock
1191317-06035-00

(replaces part #
91316-06035-00)

BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
122KF-11181-01-00GASKET, CYLINDER HEAD 1$129.99$101.39Usually ships in 7-10 business days
1399530-12016-00

(replaces part #
91810-05018-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1490105-08505-00BOLT, WASHER BASED$17.49$13.6410+ In-Stock
1590201-085L3-00WASHER, PLATE$11.49$9.42Usually ships in 7-10 business days
1690430-08178-00GASKET$6.49$5.0610+ In-Stock
1791808-16023-00

(replaces part #
99510-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
