1992 Yamaha XT600 Steering Handle Cable OEM Parts Diagram

Submodel XT600EDC - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE CABLE

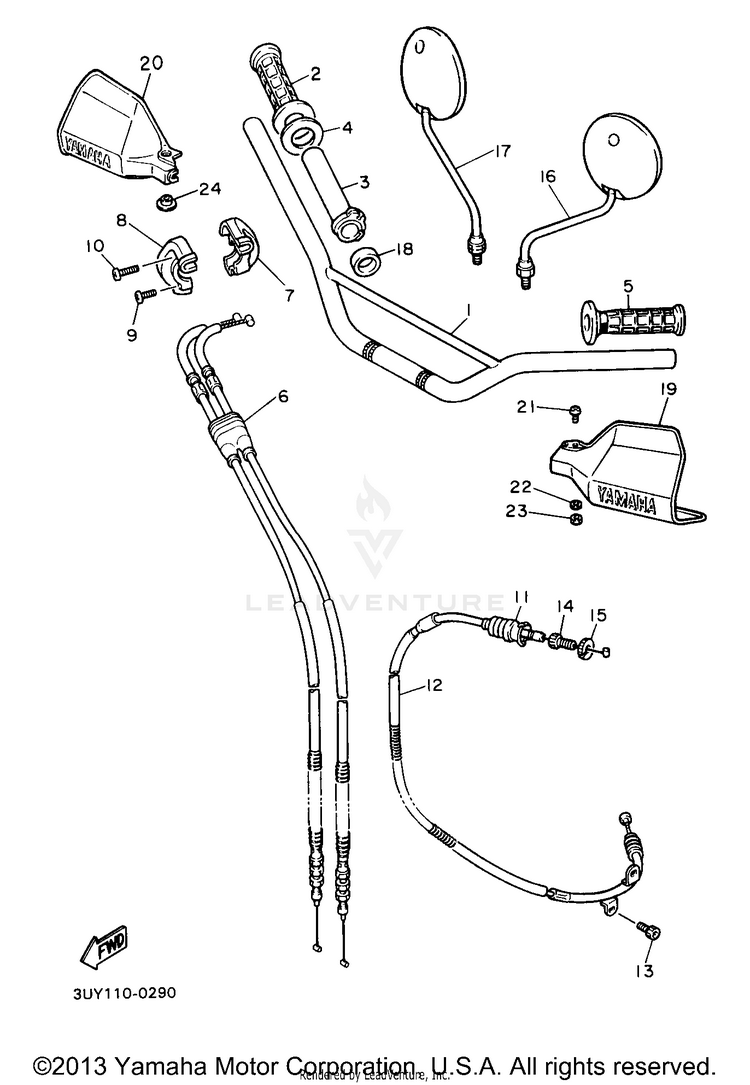

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13TB-26111-01-00HANDLEBAR$95.99$74.87Not Shipping
233G-26242-01-00

(replaces part #
33G-26242-00-00)

GRIP RH$14.49$11.881 In-Stock
31RF-26243-00-00

(replaces part #
3Y1-26243-01-00)

TUBE, THROTTLE GUIDE$31.99$24.959 In-Stock
43Y1-26249-00-00RING, LEAF$10.99$8.5710+ In-Stock
533G-26241-01-00

(replaces part #
33G-26241-00-00)

GRIP$22.99$18.85Usually ships in 7-10 business days
63YF-26302-01-00

(replaces part #
3TB-26302-00-00)

THROTTLE CABLE ASSY$90.99$70.97Usually ships in 7-10 business days
734K-26281-00-00CAP, GRIP UPPER$30.99$25.41Usually ships in 7-10 business days
81VJ-26282-00-00CAP, GRIP LOWER$28.99$23.77Usually ships in 7-10 business days
998517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1098507-05025-00

(replaces part #
98506-05025-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
111E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
123TB-26335-01-00

(replaces part #
3TB-26335-00-00)

CABLE, CLUTCH$78.99$61.61Usually ships in 7-10 business days
1391317-06010-00

(replaces part #
91316-06010-00)

BOLT$10.49$8.184 In-Stock
1490123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1590179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
163Y1-26290-00-00BACK MIRROR ASSY (R.H)$58.99$46.014 In-Stock
175Y1-26290-11-00

(replaces part #
5Y1-26290-10-00)

MIRROR ASSY., 2$82.99$64.732 In-Stock
1890387-22660-00COLLAR$10.49$8.183 In-Stock
191VJ-26141-00-00GUARD, BRUSH 1 | FARAWAY BLUE$65.99$51.47Usually ships in 7-10 business days
203TB-26142-40-00GUARD, BRUSH 2 | FARAWAY BLUE$37.99$31.15Usually ships in 7-10 business days
2198507-06035-00

(replaces part #
98501-06035-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
2292990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
2395380-06700-00NUT$9.49$7.404 In-Stock
2490387-06500-00COLLAR$9.49$7.403 In-Stock
