1992 Yamaha XT600 Steering OEM Parts Diagram

Submodel XT600EDC - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

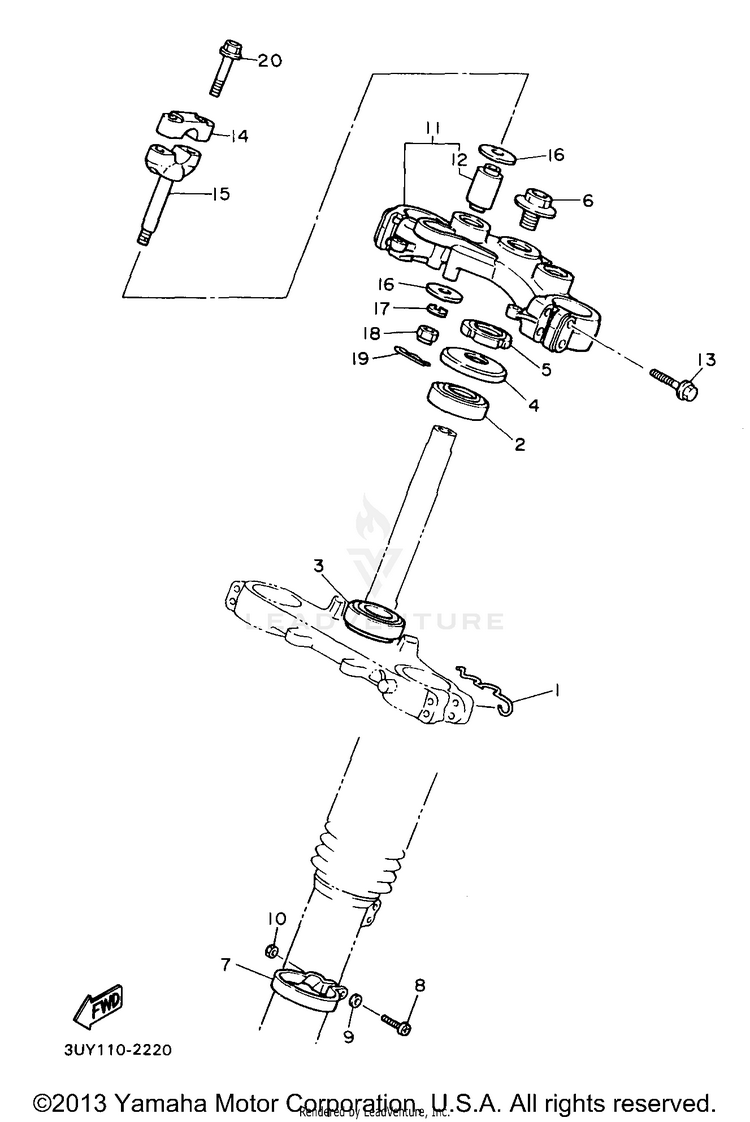

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13TB-2331E-00-00GUIDE, CABLE$11.49$9.42Usually ships in 7-10 business days
293332-00001-00BEARING$63.99$49.913 In-Stock
393332-00008-00BEARING$73.99$57.714 In-Stock
41W1-23416-00-00COVER, BALL RACE 2$32.99$25.736 In-Stock
590179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
690105-14102-00BOLT, FLANGE$6.49$5.063 In-Stock
734L-23318-01-00HOLDER, CABLE 1$31.99$26.23Not Shipping
898517-05020-00

(replaces part #
98501-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
992990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
1095380-05600-00

(replaces part #
95303-05600-00)

NUT$9.49$8.54Usually ships in 7-10 business days
113TB-W2341-00-00CROWN, HANDLE$253.99$198.11Usually ships in 7-10 business days
125A8-23434-01-00

(replaces part #
5A8-23434-00-00)

HOLDER, DAMPER$42.99$35.25Usually ships in 7-10 business days
1395817-08040-00

(replaces part #
95816-08040-00)

BOLT, FLANGE$7.49$5.841 In-Stock
141E6-23441-00-00HOLDER, HANDLE UPR (1E6-23441-0$30.99$24.1710+ In-Stock
153Y6-23442-00-98HOLDER, HANDLE LOWER | LOW GLOSS BLACK$39.99$32.79Usually ships in 7-10 business days
1690201-100A1-00WASHER, PLATE$9.49$7.409 In-Stock
1792990-10100-00

(replaces part #
92901-10100-00)

WASHER, SPRING$3.25$2.806 In-Stock
1895380-10700-00

(replaces part #
95303-10700-00)

NUT$6.49$5.0610+ In-Stock
1990468-12006-00CLIP$9.49$7.404 In-Stock
2095817-08035-00

(replaces part #
95816-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
