1993 Yamaha RT180 Air Cleaner OEM Parts Diagram

Submodel RT180E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

AIR CLEANER

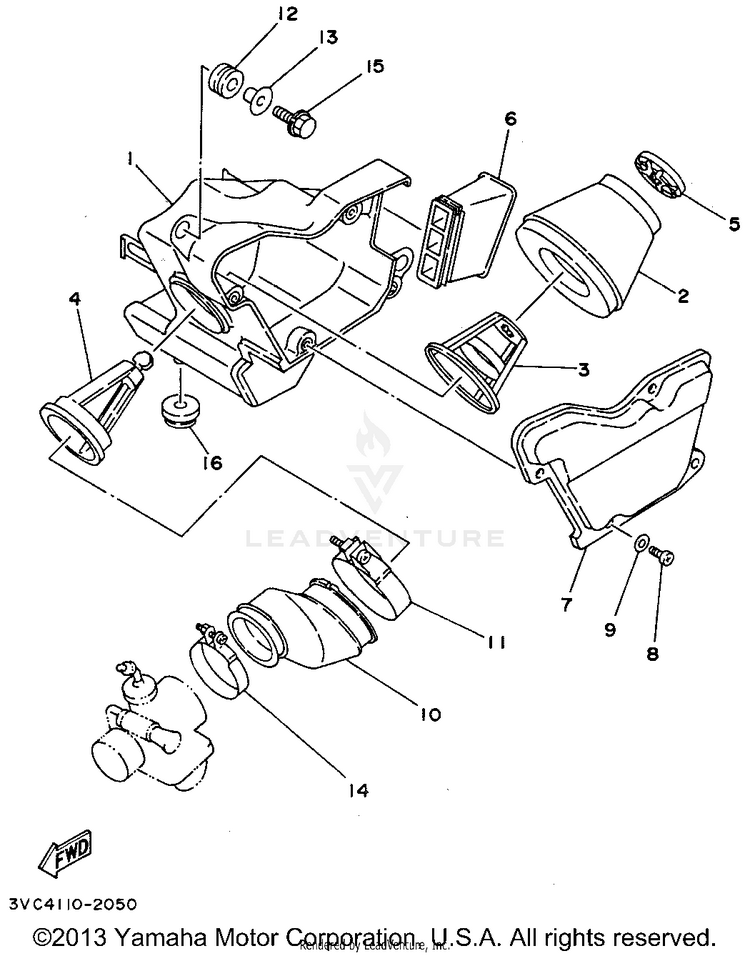

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13J0-14411-01-00CASE, AIR CLEANER 1$77.99$60.83Not Shipping
23J0-14451-02-00

(replaces part #
3J0-14451-01-00)

ELEMENT, AIR CLEANER$7.49$5.848 In-Stock
33J0-14458-01-00GUIDE$21.99$18.03Not Shipping
43J0-14473-01-00GUIDE$7.99$7.19Not Shipping
53J0-14468-00-00PLATE, ELEMENT FITTING$7.99$6.23Not Shipping
63J0-14437-00-00DUCT$19.49$15.98Not Shipping
73J0-14412-00-00CAP, CLEANER CASE 1$13.49$11.06Not Shipping
898580-05012-00SCREW, PAN HEAD$7.99$6.2310+ In-Stock
992990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
103J1-14453-00-00JOINT, AIR CLEANER 1$26.99$22.13Not Shipping
1190460-71129-00CLAMP, HOSE (90460-71017)$6.49$5.84Not Shipping
1290480-14023-00GROMMET$8.49$6.6210+ In-Stock
1390387-07391-00COLLAR$10.49$8.1810+ In-Stock
1490460-49058-00CLAMP, HOSE$8.49$6.6710+ In-Stock
1597017-06025-00

(replaces part #
97502-06125-09)

BOLT$4.55$3.9110+ In-Stock
1690480-18171-00GROMMET$9.49$7.409 In-Stock
