1993 Yamaha RT180 Frame OEM Parts Diagram

Submodel RT180E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

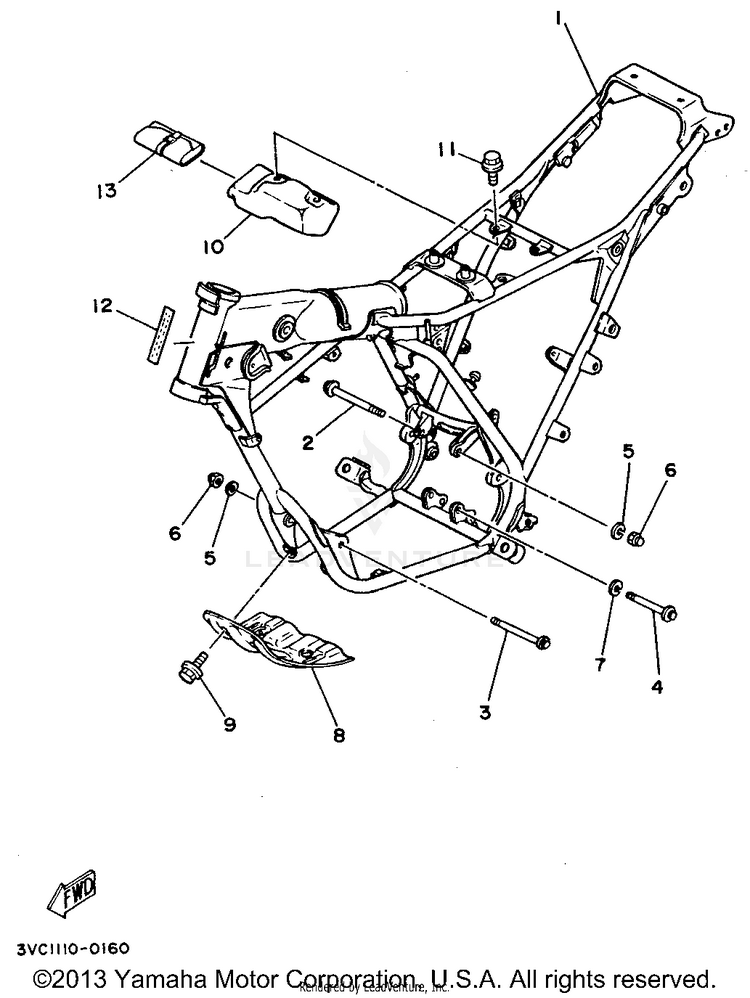

FRAME

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13VC-F1110-01-35FRAME COMP | SILVER$958.99$817.52Usually ships in 7-10 business days
290105-08099-00BOLT, FLANGE$6.49$5.0610+ In-Stock
390105-08120-00BOLT, FLANGE$10.49$8.1810+ In-Stock
490105-10037-00BOLT, WASHER BASED$9.49$7.404 In-Stock
592990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
690179-08491-00

(replaces part #
90179-08859-09)

NUT$2.80$2.4110+ In-Stock
792990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
85L9-F1471-00-00PROTECTOR, ENGINE$21.99$18.03Not Shipping
997080-06012-00

(replaces part #
97502-06212-09)

BOLT$2.99$2.69Usually ships in 7-10 business days
105L9-F1170-00-00BOX COMP.$24.99$20.49Usually ships in 7-10 business days
1197502-06210-09BOLT, WITH WASHER (97502-06210-$5.49$4.94Usually ships in 7-10 business days
123VC-2179X-00-00PLATE, EPA U50$15.49$12.70Usually ships in 7-10 business days
134VW-F8100-01-00

(replaces part #
5L9-F8100-10-00)

TOOL KIT$73.99$57.71Usually ships in 7-10 business days
