1993 Yamaha RT180 Front Wheel OEM Parts Diagram

Submodel RT180E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

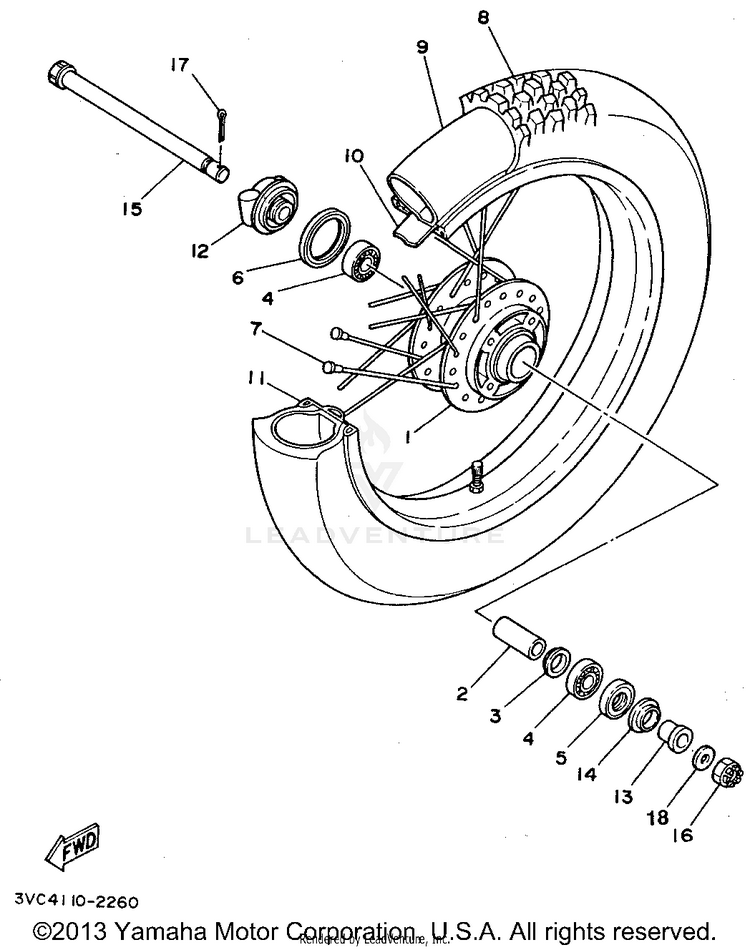

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12TW-F5111-00-NW

(replaces part #
2TW-F5111-00-98)

HUB, FRONT | LOW GLOSS BLK$189.99$148.19Usually ships in 7-10 business days
23V9-F5117-00-00SPACER, BEARING$16.49$13.52Not Shipping
3504-29531-00-00FLANGE, SPACER$0.25$0.22Not Shipping
493306-20205-00

(replaces part #
93306-20209-00)

BEARING$42.99$33.5310+ In-Stock
593106-22016-00OIL SEAL$5.99$5.39Usually ships in 7-10 business days
693105-45017-00OIL SEAL$16.49$12.862 In-Stock
73VC-F5104-01-00COMPLETE FRONT WHEEL SPOKE SET$60.99$47.57Not Shipping
894108-218F5-00TIRE (80/100-21 51P MT21 TT)$173.99$146.41Usually ships in 7-10 business days
994208-21881-00TUBE (80/100C-21 TR4)$12.99$11.84Usually ships in 7-10 business days
1094330-21849-00BAND, RIM (3.00-21)$13.49$11.06Usually ships in 7-10 business days
1194418-21853-00

(replaces part #
94418-21853-09)

RIM(1.85-21)$192.99$150.53Usually ships in 7-10 business days
123VC-F5191-00-00HOUSING, GEAR$84.99$66.29Not Shipping
1390387-15805-00

(replaces part #
90387-15805-09)

COLLAR$14.99$13.05Not Shipping
143M5-25118-00-00

(replaces part #
3V9-F5118-00-00)

COVER, HUB DUST$7.49$6.74Usually ships in 7-10 business days
152TW-F5181-00-00

(replaces part #
2TW-F5181-01-00)

AXLE,WHEEL$46.99$38.53Usually ships in 7-10 business days
1690171-14056-00

(replaces part #
90171-14020-00)

NUT, CASTLE$14.49$11.3010+ In-Stock
1791490-30030-00

(replaces part #
91401-30030-00)

PIN, COTTER$8.49$6.6210+ In-Stock
