1993 Yamaha YZ80 Crankcase OEM Parts Diagram

Submodel YZ80E1 - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

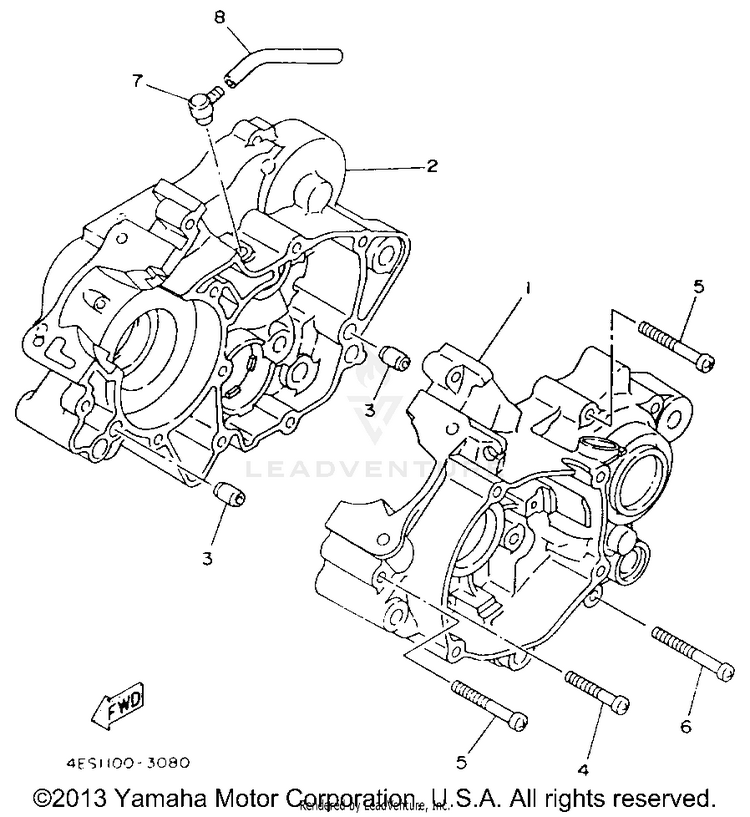

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-03277-00

(replaces part #
4ES-15111-00-00)

CRANKCASE 1$552.99$431.33Usually ships in 7-10 business days
24ES-15121-02-00

(replaces part #
4ES-15121-00-00)

CRANKCASE 2$406.99$317.45Usually ships in 7-10 business days
399530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
498580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
598580-06550-00SCREW, PAN HEAD$9.49$7.409 In-Stock
698580-06560-00

(replaces part #
92580-06560-00)

SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
7583-15371-00-00BREATHER$7.49$5.8410+ In-Stock
890446-07349-00HOSE$11.49$9.42Usually ships in 7-10 business days
