1993 Yamaha YZ80 Starter OEM Parts Diagram

Submodel YZ80E1 - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

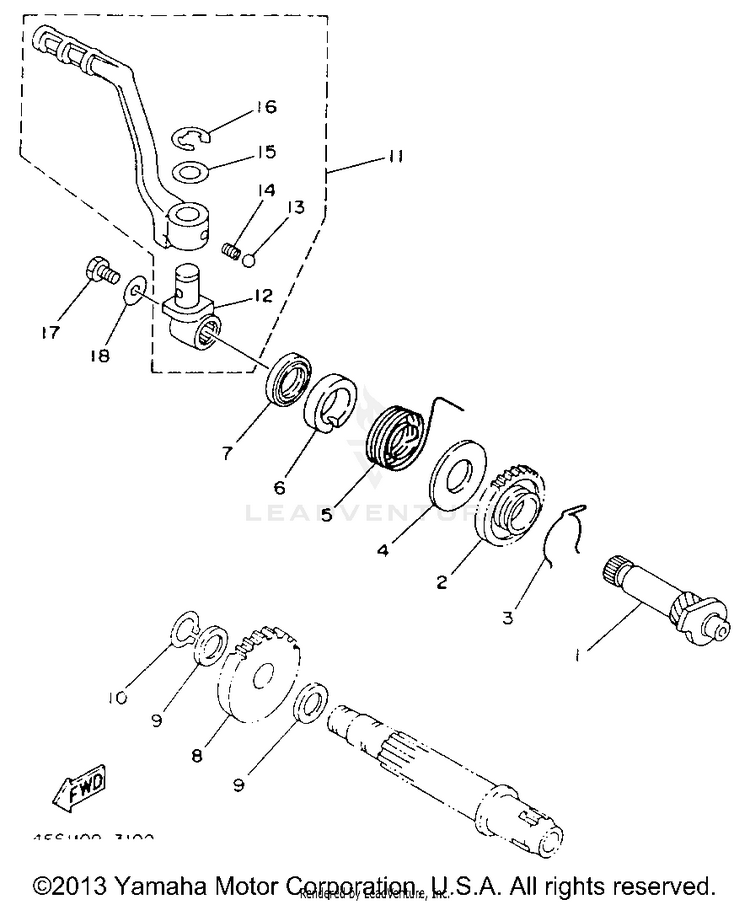

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-15660-00-00KICK AXLE ASSY$129.99$101.39Not Shipping
24ES-15641-00-00GEAR, KICK$64.99$50.69Usually ships in 7-10 business days
390468-23194-00CLIP$10.49$8.186 In-Stock
490201-176L4-00WASHER, PLATE$10.49$8.182 In-Stock
590508-26750-00SPRING, TORSION$13.49$10.524 In-Stock
64ES-15664-00-00GUIDE, SPRING$33.99$26.512 In-Stock
793102-17263-00OIL SEAL$11.49$8.9610+ In-Stock
84ES-15651-00-00GEAR, KICK IDLE$89.18$69.56Not Shipping
990201-124F8-00WASHER, PLATE$10.49$8.1810+ In-Stock
1099009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
114ES-15620-00-00KICK CRANK ASSY$221.99$173.15Usually ships in 7-10 business days
124ES-15621-00-00BOSS, KICK CRANK$65.48$51.07Not Shipping
1393507-32031-00BALL$5.49$4.2810+ In-Stock
1490501-12081-00SPRING, BOSS STOPPER$9.49$7.4010+ In-Stock
1590201-12631-00WASHER, PLATE$10.49$8.182 In-Stock
1693430-08007-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
1795024-06012-00

(replaces part #
95023-06012-00)

BOLT, FLANGE (SMALL HEAD)$4.75$4.0810+ In-Stock
1890201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
