1993 Yamaha YZ80 Rear Brake Caliper OEM Parts Diagram

Submodel YZ80E1 - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

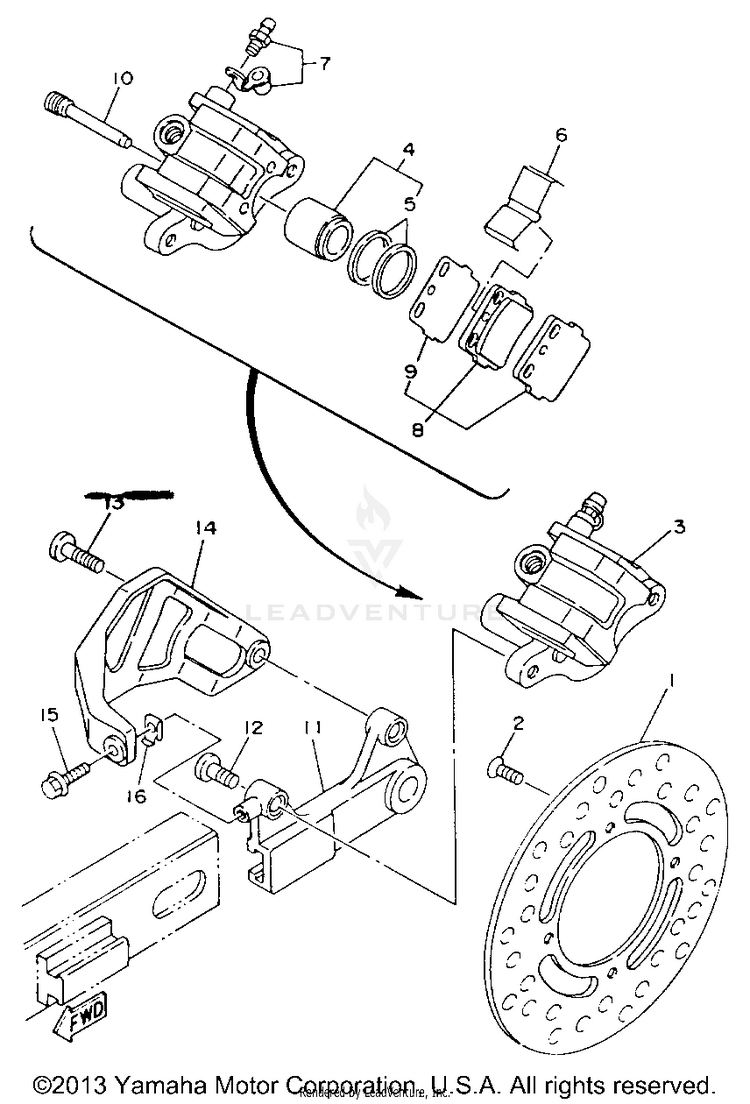

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-2582W-00-00DISC, REAR BRAKE 2$118.99$92.81Usually ships in 7-10 business days
290151-06080-00

(replaces part #
90149-06272-00)

SCREW, COUNTERSUNK$2.35$2.0210+ In-Stock
34ES-2580W-00-00CALIPER ASSY, REAR 2$249.99$194.99Not Shipping
44ES-W0057-00-00PISTON ASSY, CALIPER$111.99$87.35Usually ships in 7-10 business days
54ES-W0047-00-00CALIPER SEAL KIT$21.99$17.156 In-Stock
61UY-25919-51-00SUPPORT, PAD$24.99$19.494 In-Stock
736Y-W0048-00-00BLEED SCREW KIT$10.99$8.5710+ In-Stock
84ES-W0046-50-00BRAKE PAD KIT 2-$30.06Usually ships in 7-10 business days
93GD-25827-00-00SHIM, CALIPER$11.99$9.3510+ In-Stock
103GD-25933-00-00PIN, PAD$31.99$24.9510+ In-Stock
114ES-25920-00-00SUPPORT BRACKET ASSY$144.99$113.09Usually ships in 7-10 business days
1290110-08096-00BOLT, HEXAGON SOCKET HEAD$11.49$8.9610+ In-Stock
1390111-08084-00

(replaces part #
90109-08718-00)

BOLT,HEX. SOCKET BUT$6.49$5.0610+ In-Stock
145PA-27491-00-00

(replaces part #
4ES-27491-00-00)

PROTECTOR$78.99$61.611 In-Stock
1595024-06012-00

(replaces part #
95023-06012-00)

BOLT, FLANGE (SMALL HEAD)$4.75$4.0810+ In-Stock
164ES-27114-00-00STOPPER, MAIN STAND$17.99$14.752 In-Stock
