1994 Yamaha BLASTER 200 Crankcase Cover 1 OEM Parts Diagram

Submodel BLASTER - YFS200F_MN - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

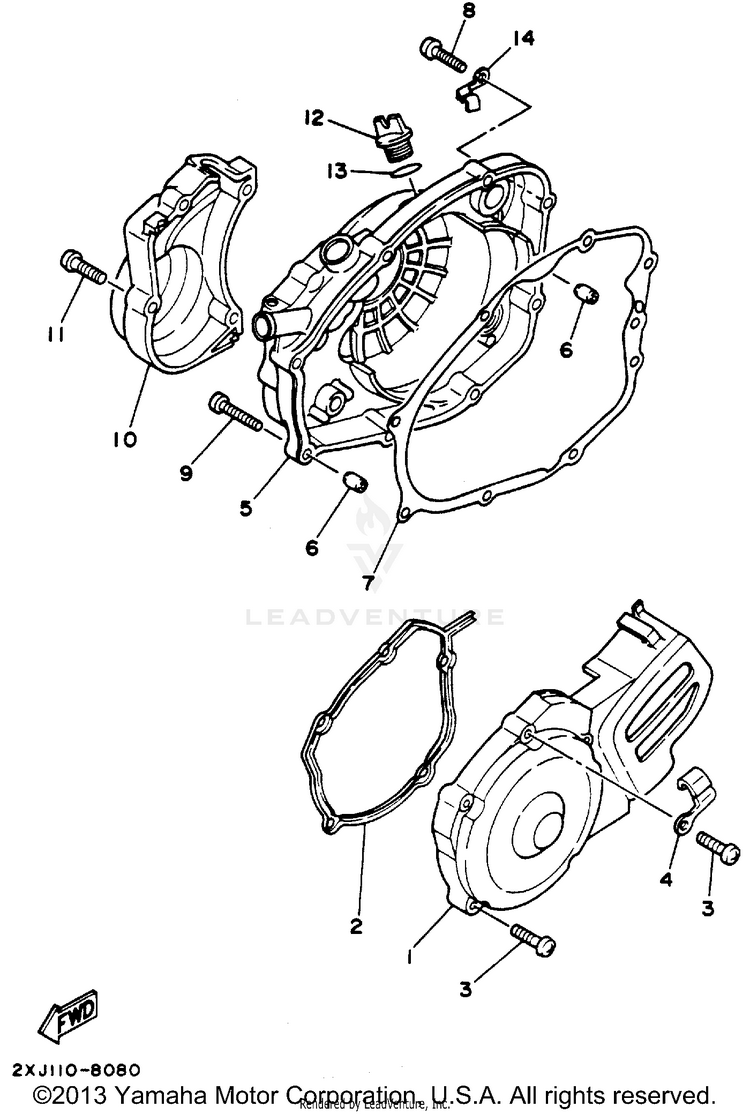

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-15411-00-00COVER, CRANKCASE 1$64.99$50.69Not Shipping
22XJ-15379-00-00SEAL, CRANKCASE$30.99$24.175 In-Stock
398517-06030-00SCREW, PAN HEAD$3.45$2.97
490465-10069-00CLAMP$12.49$9.745 In-Stock
52XJ-15420-01-00

(replaces part #
2XJ-15420-00-00)

CRANKCASE COVER ASSY 2$192.99$150.53Not Shipping
699530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
73JM-15451-11-00

(replaces part #
3JM-15451-01-00)

GASKET, CRANKCASE COVER 1$25.99$20.2710+ In-Stock
AFTERMARKET ALTERNATIVE
$10.99$7.99Not Shipping
898517-06030-00SCREW, PAN HEAD$3.45$2.97
998507-06035-00

(replaces part #
98506-06035-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1037F-15416-00-00COVER, OIL PUMP$21.99$18.03Not Shipping
1198517-06030-00SCREW, PAN HEAD$3.45$2.97
123Y1-15363-10-00

(replaces part #
1RG-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
1393210-19123-00O-RING$8.99$7.0110+ In-Stock
14367-13174-00-00HOLDER, OIL PIPE$10.99$9.01Usually ships in 7-10 business days
