1994 Yamaha BLASTER 200 Front Fender OEM Parts Diagram

Submodel BLASTER - YFS200F_MN - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER

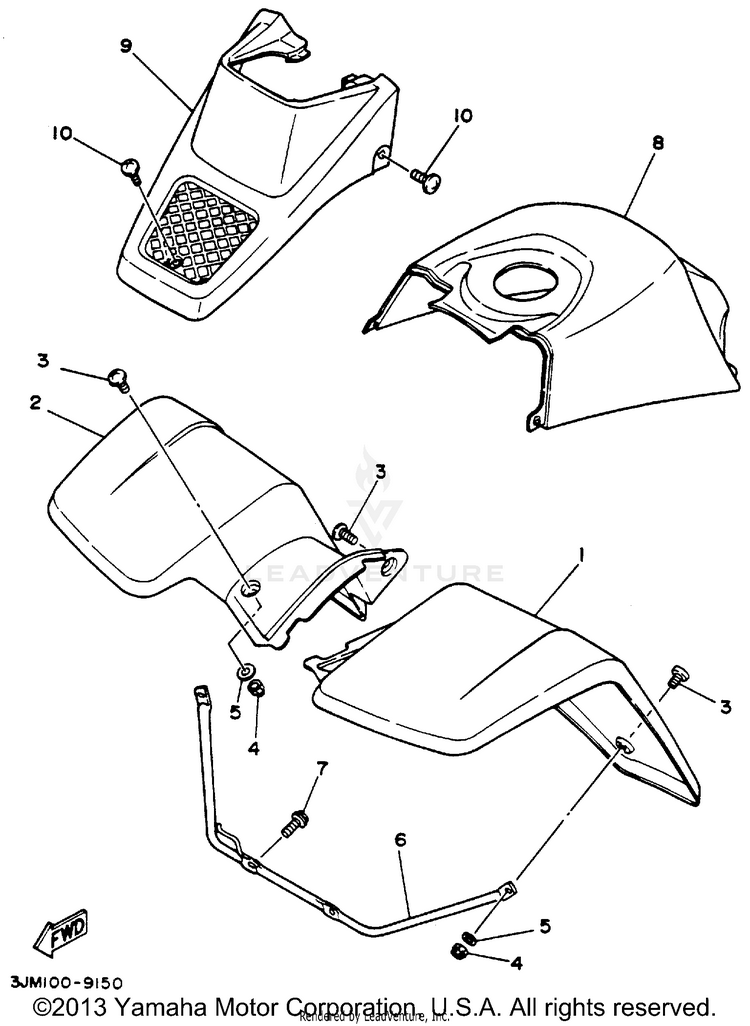

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2XJ-23391-20-00PANEL, FRONT | UR BLUISH GREEN SOLID 1$94.99$74.09Usually ships in 7-10 business days
-2XJ-21556-60-00FENDER, FRONT 2 | UR FOREST GREEN$97.29$75.89Usually ships in 7-10 business days
-2XJ-W2151-69-00

(replaces part #
2XJ-21511-60-00)

FENDER, FRONT | UR FOREST GREEN-$147.08Usually ships in 7-10 business days
-2XJ-W217A-80-00

(replaces part #
2XJ-2171A-80-00)

COVER, TOP | UR DEEP REDDISH PURPLE SOLID 1$70.99$55.37Usually ships in 7-10 business days
12XJ-W2151-59-00

(replaces part #
2XJ-21511-50-00)

FENDER, FRONT | UR DEEP REDDISH PURPLE SOLID 1$109.99$85.79Usually ships in 7-10 business days
22XJ-21556-50-00FENDER, FRONT 2 | UR DEEP REDDISH PURPLE SOLID 1$105.99$82.67Not Shipping
390149-06306-00SCREW$3.65$3.1410+ In-Stock
495617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
592990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
62XJ-21513-00-00STAY, FENDER 1$56.99$44.45Not Shipping
795817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
82XJ-2171A-20-00COVER, TOP | UR BLUISH GREEN SOLID 1$53.59$41.80Not Shipping
92XJ-23391-80-00PANEL, FRONT | UR DEEP REDDISH PURPLE SOLID 1$69.99$54.59Not Shipping
1090154-05051-00SCREW, BINDING$4.40$3.788 In-Stock
