1994 Yamaha BLASTER 200 Crankcase OEM Parts Diagram

Submodel BLASTER - YFS200F_MN - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

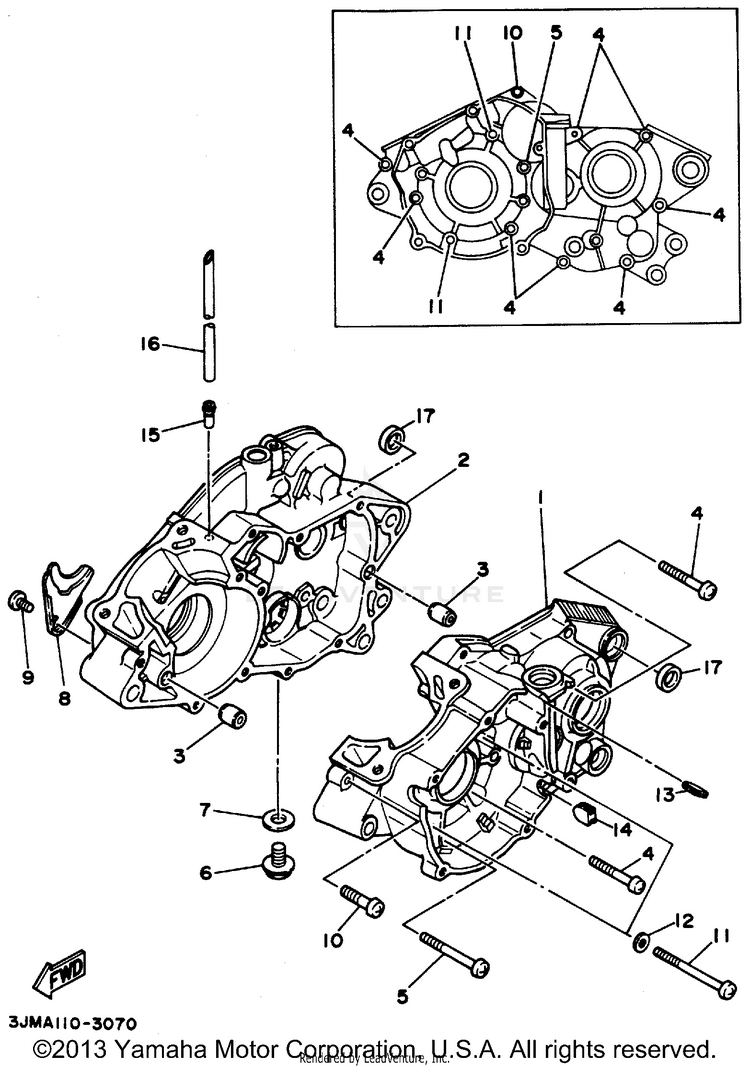

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-15111-01-00CRANKCASE 1$429.99$335.39Usually ships in 7-10 business days
22XJ-15121-00-00CRANKCASE 2$311.99$243.35Not Shipping
399530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
498580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
598580-06560-00SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
690340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
790201-12172-00WASHER, PLATE$3.45$2.978 In-Stock
837F-15128-00-00HOLDER$4.99$4.62Not Shipping
998507-08010-00

(replaces part #
92501-08010-00)

SCREW, PAN HEAD$9.49$7.406 In-Stock
1097885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
1198580-06575-00SCREW, PAN HEAD$13.49$11.06Usually ships in 7-10 business days
1292990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1390480-01209-00GROMMET$6.49$6.05
1490338-09206-00PLUG$10.49$8.185 In-Stock
15137-13115-01-00

(replaces part #
137-13115-00-00)

CONNECTOR, SUCTION PIPE$4.99$4.29Not Shipping
1691A20-05145-00

(replaces part #
91A20-05100-00)

TUBE, FLEXIBLE VINYL$32.99$25.735 In-Stock
1790201-166L5-00WASHER, PLATE$4.15$3.57Not Shipping
