1994 Yamaha WARRIOR 350 Crankcase OEM Parts Diagram

Submodel WARRIOR - YFM350XF - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

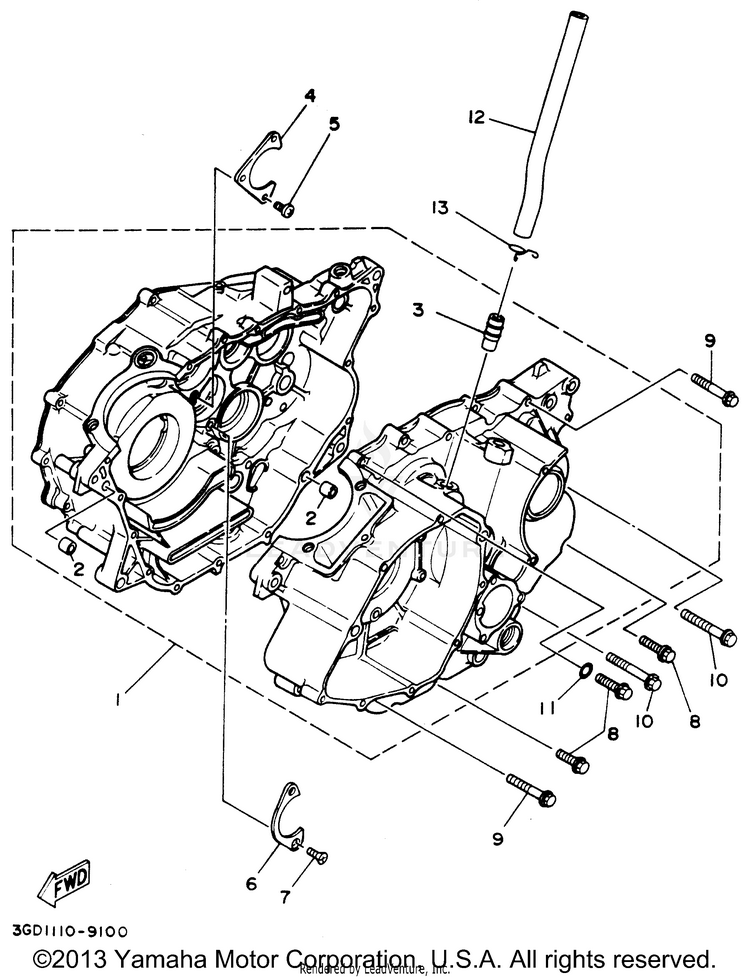

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GD-15100-03-00

(replaces part #
3GD-15100-00-00)

CRANKCASE ASSY$1,279.99$1,038.00Usually ships in 7-10 business days
299530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
3371-11167-01-00PIPE, BREATHER 2$14.49$11.301 In-Stock
43R4-15381-00-00PLATE, BEARING COVER$5.49$4.94Usually ships in 7-10 business days
598517-06012-00

(replaces part #
98511-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
61UY-15383-00-00PLATE, BEARING COVER$8.49$7.64Usually ships in 7-10 business days
798707-06014-00

(replaces part #
98701-06014-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
895024-06030-00

(replaces part #
95023-06030-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.407 In-Stock
995027-06050-00

(replaces part #
95021-06050-00)

BOLT, FLANGE$2.75$2.3610+ In-Stock
1095027-06060-00

(replaces part #
95021-06060-00)

BOLT, FLANGE$3.10$2.677 In-Stock
1190430-06014-00GASKET$8.99$7.0110+ In-Stock
1290445-16416-00

(replaces part #
90445-16594-00)

HOSE$9.99$7.79Not Shipping
1390467-14015-00CLIP$9.49$7.407 In-Stock
