1994 Yamaha WARRIOR 350 Exhaust OEM Parts Diagram

Submodel WARRIOR - YFM350XF - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

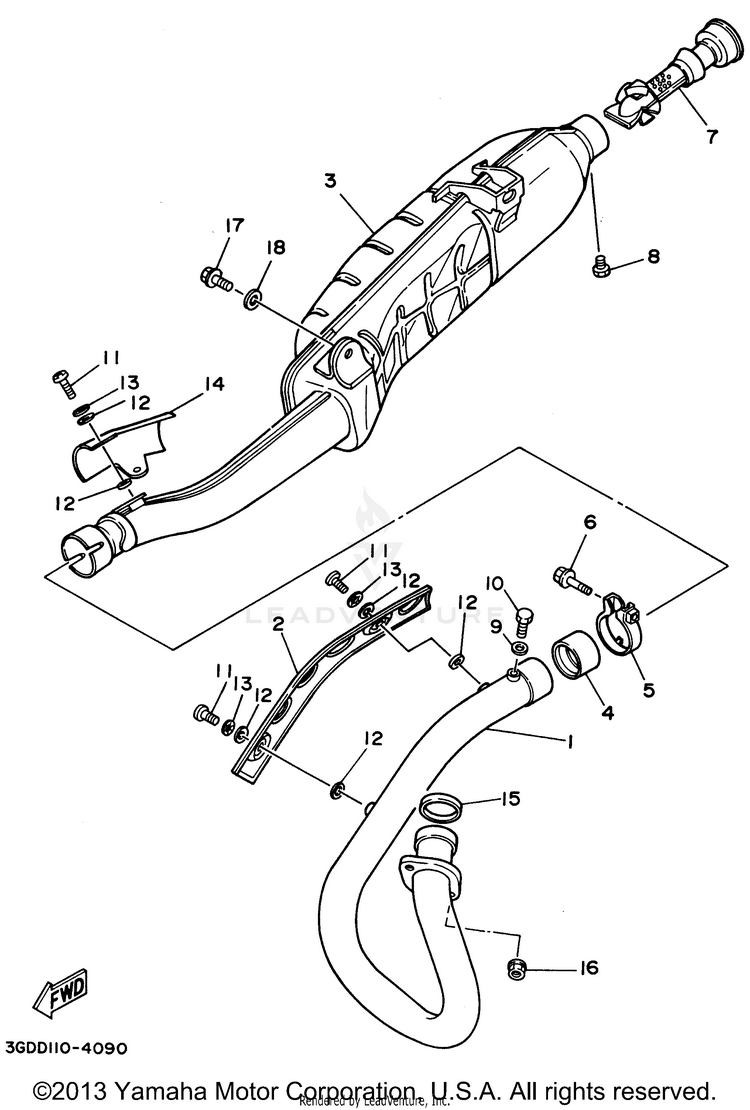

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-14611-03-00

(replaces part #
1UY-14611-02-00)

PIPE, EXHAUST 1$156.99$122.45Usually ships in 7-10 business days
21YW-14628-00-00PROTECTOR, EXHAUST PIPE$82.99$64.73Not Shipping
31UY-14711-05-00

(replaces part #
1UY-14711-02-00)

MUFFLER 1$559.99$452.94Usually ships in 7-10 business days
43YF-14755-00-00GASKET, SILENCER$37.99$29.6310+ In-Stock
51UY-14715-00-00BAND, MUFFLER$18.99$14.81Not Shipping
695817-08045-00BOLT, FLANGE$3.69$3.3210+ In-Stock
721V-14752-00-00PIPE, OUTLET$132.99$103.731 In-Stock
897017-06008-00

(replaces part #
97011-06008-00)

BOLT, HEX$3.85$3.313 In-Stock
992907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
1090101-06576-00BOLT, HEXAGON$9.49$8.542 In-Stock
1198907-06010-00

(replaces part #
98906-06010-00)

SCREW, BIND$1.80$1.558 In-Stock
124BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1390206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
141UY-14718-00-00PROTECTOR, MUFFLER 1$30.99$25.41Not Shipping
153GD-14613-00-00GASKET, EXHAUST PIPE$15.49$12.0810+ In-Stock
1690179-06500-00

(replaces part #
90179-06499-00)

NUT$8.49$6.6210+ In-Stock
1795817-08016-00

(replaces part #
95811-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
1890201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
