1994 Yamaha WARRIOR 350 Headlight OEM Parts Diagram

Submodel WARRIOR - YFM350XF - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

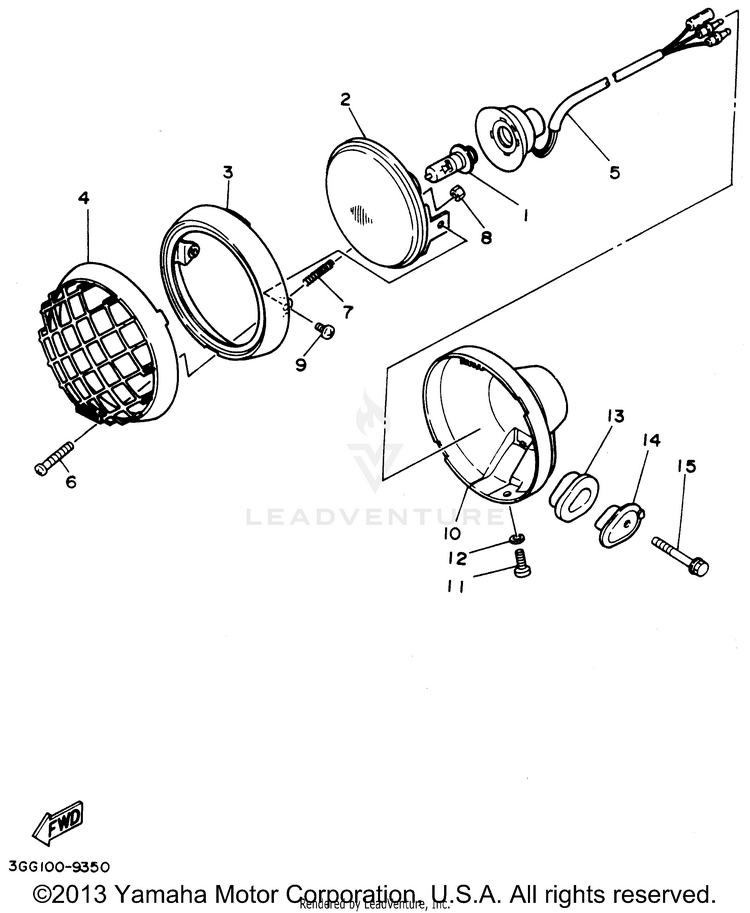

HEADLIGHT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GN-84314-00-XXBULB (12V30/30W) (2GN-84314-00-$16.99$13.30Not Shipping
24SH-84320-00-00

(replaces part #
2GU-84320-00-00)

LENS ASSY$77.99$60.83Not Shipping
32GU-84315-00-00RIM, HEAD LIGHT$59.99$46.79Not Shipping
42GU-84159-00-00GUARD, HEAD LIGHT$43.99$34.316 In-Stock
52GU-84340-10-00SOCKET CORD ASSEMBLY 1$27.99$22.95Not Shipping
698507-03540-00

(replaces part #
2GU-84331-00-00)

SCREW, PAN HEAD$2.35$2.0210+ In-Stock
72GU-84332-00-00SPRING, SCREW$8.49$6.628 In-Stock
82GU-84334-00-00NUT, ADJUSTING$8.49$6.627 In-Stock
998580-05008-00SCREW, PAN HEAD$8.49$7.64Usually ships in 7-10 business days
102GU-84330-50-00BODY ASSEMBLY | RADICAL GRAY$45.99$37.71Not Shipping
1197885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
1292990-05100-00WASHER, SPRING-$0.8310+ In-Stock
132GU-84345-00-00

(replaces part #
3GD-84345-00-00)

DAMPER, HEADLIGHT$8.49$6.6210+ In-Stock
142GU-84338-00-00COLLAR, BODY FITTING$24.99$19.4910+ In-Stock
1595817-08055-00BOLT, FLANGE$4.21$3.6210+ In-Stock
