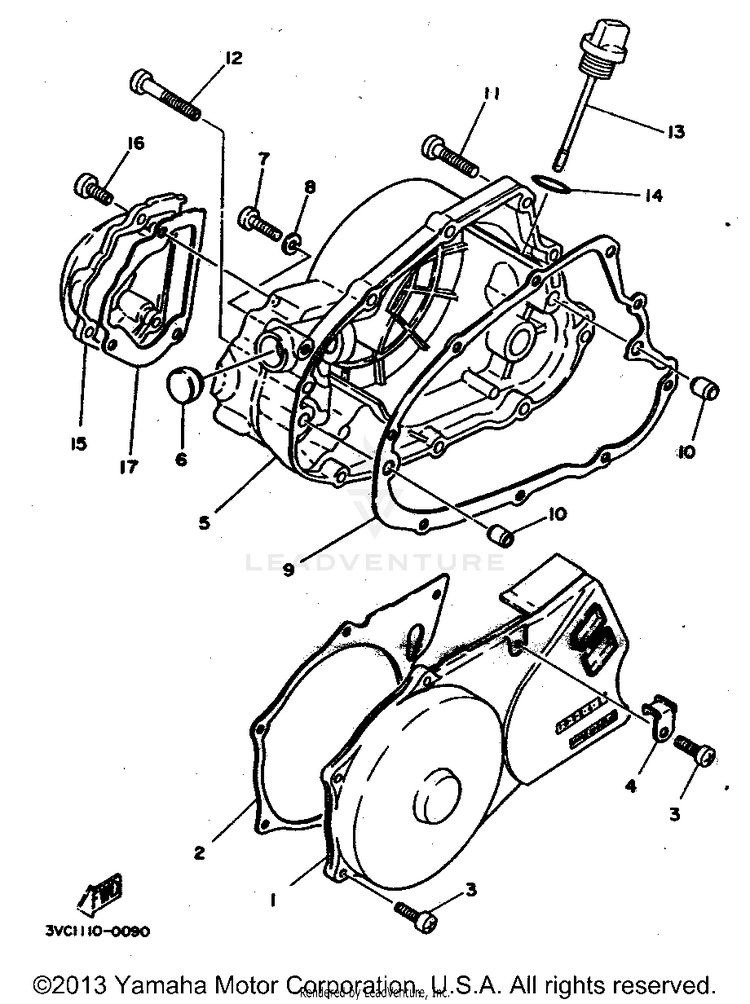

1995 Yamaha RT180 Crankcase Cover 1 OEM Parts Diagram

Submodel RT180G - 1995

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	23K-E5411-00-00	COVER, CRANKCASE 1	$75.99	$61.35	Not Shipping
2	3VC-15455-01-00 (replaces part # 3VC-15455-00-00)	GASKET 1	$9.49	$7.40	Not Shipping
3	98517-06020-00 (replaces part # 98507-06020-00)	SCREW,PAN HEAD	$2.35	$2.02	10+ In-Stock
4	5L9-E5484-00-00	CLAMP 2	$3.30	$2.97	Usually ships in 7-10 business days
5	5L9-E5431-00-AC (replaces part # 5L9-E5431-00-00)	COVER, CRANKCASE 3 (5L9-E5431-0	$118.99	$92.81	Not Shipping
6	90338-19078-00	PLUG	$7.99	$7.19	Not Shipping
7	98517-06030-00	SCREW, PAN HEAD	$3.45	$2.97
8	90430-06014-00	GASKET	$8.99	$7.01	10+ In-Stock
9	3VC-15451-01-00 (replaces part # 3VC-15451-00-00)	GASKET,CRCS COVER	$15.49	$12.08	Not Shipping
10	99530-10114-00 (replaces part # 99530-10014-00)	PIN, DOWEL	$2.65	$2.48	10+ In-Stock
11	98517-06025-00 (replaces part # 98507-06025-00)	SCREW, PAN HEAD	$4.05	$3.48	10+ In-Stock
12	98507-06045-00	SCREW, PAN HEAD	$3.40	$2.92	10+ In-Stock
13	401-15362-00-00	PLUG, OIL LEVEL	$20.99	$17.21	Not Shipping
14	93210-19123-00	O-RING	$8.99	$7.01	10+ In-Stock
15	5L9-E5416-00-AC (replaces part # 5L9-E5416-00-00)	OIL PUMP COVER	$22.99	$18.85	Usually ships in 7-10 business days
16	98517-06020-00 (replaces part # 98507-06020-00)	SCREW,PAN HEAD	$2.35	$2.02	10+ In-Stock
17	3VC-E5456-00-00	GASKET, OIL PUMP COVER 1	$2.45	$2.20	Not Shipping
