1995 Yamaha RT180 Intake OEM Parts Diagram

Submodel RT180G - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

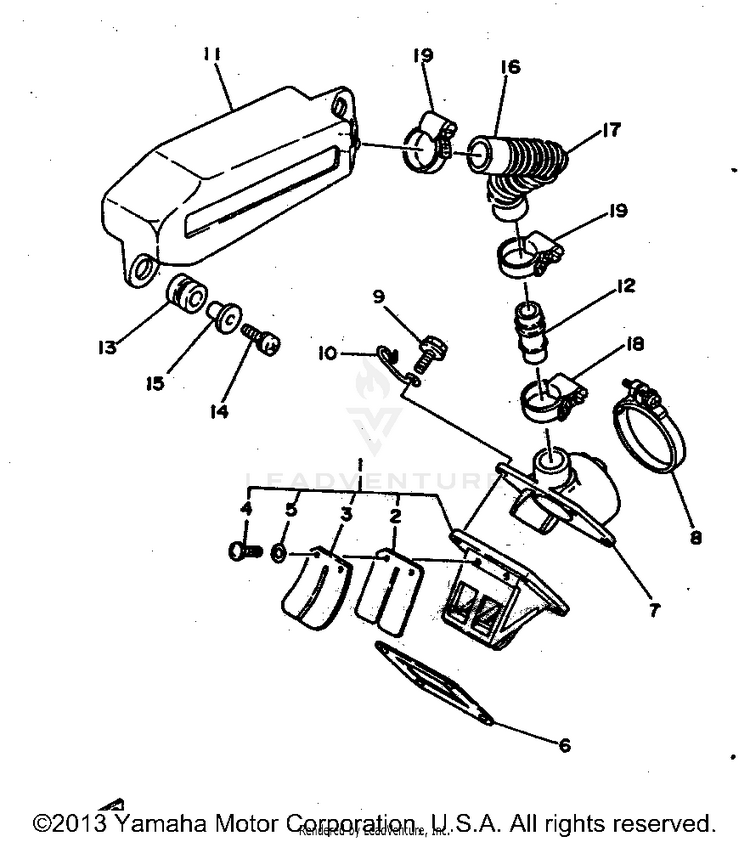

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1345-13610-20-00

(replaces part #
558-13610-00-00)

REED VALVE ASY$247.99$193.43Usually ships in 7-10 business days
2345-13613-70-00REED, VALVE$78.99$61.61Usually ships in 7-10 business days
3345-13616-70-00STOPPER, REED VALVE$29.99$27.46Not Shipping
498517-03008-00

(replaces part #
98507-03008-00)

SCREW, PAN HEAD$3.20$2.756 In-Stock
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
63VC-13622-01-00

(replaces part #
3VC-13622-00-00)

GASKET,VALVE SEAT$3.45$2.97Not Shipping
75L9-E3565-00-00JOINT, CARBURETOR$36.99$30.33Usually ships in 7-10 business days
890460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
997502-06225-00BOLT, W/WASHER$0.00$0.00Not Shipping
1090465-20800-09CLAMP (90465-20800-00)$1.30$1.17Usually ships in 7-10 business days
115L9-E3581-00-00CHAMBER, AIR$22.99$18.85Usually ships in 7-10 business days
125L9-E4465-01-00PIPE$28.99$23.77Usually ships in 7-10 business days
1390480-14023-00GROMMET$8.49$6.6210+ In-Stock
1497602-06125-09SCREW, PAN HEAD WITH WASHER$1.00$0.90Usually ships in 7-10 business days
1590387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
165L9-E3584-00-00PIPE, INTAKE MANIFOLD$2.05$1.84Not Shipping
1790501-20802-09SPRING, COMPRESSION$1.35$1.22Not Shipping
1890460-16W00-00

(replaces part #
90460-16W00-09)

CLAMP, HOSE$2.55$2.30Not Shipping
1990460-16W00-00

(replaces part #
90460-16W00-09)

CLAMP, HOSE$2.55$2.30Not Shipping
