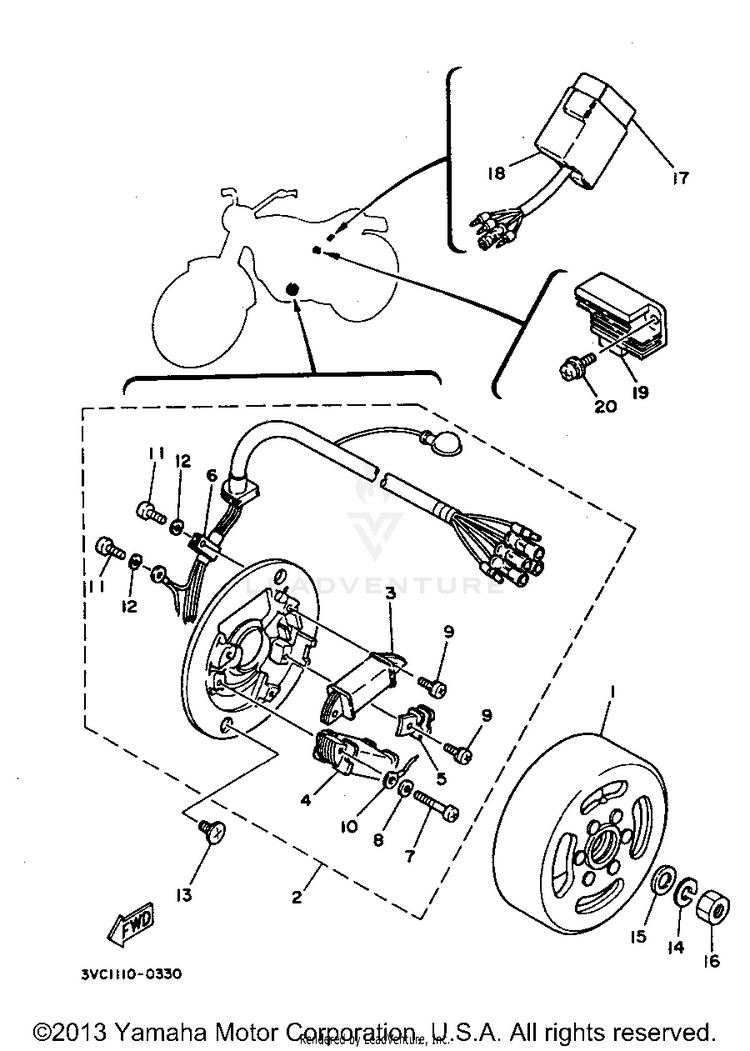

1995 Yamaha RT180 Generator OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	23K-H5550-00-00	ROTOR ASSEMBLY	$410.99	$322.24	Usually ships in 7-10 business days
2	42L-H5560-00-00	BASE ASSEMBLY	$313.99	$246.66	Not Shipping
3	4Y4-85520-M1-00 (replaces part # 4Y4-85520-M0-00)	COIL, CHARGE	$50.99	$39.77	Usually ships in 7-10 business days
4	42L-H1313-00-00	COIL, LIGHTING 1	$37.99	$31.15	Usually ships in 7-10 business days
5	23L-85580-M0-00	COIL, PULSER	$64.99	$50.69	Not Shipping
6	90461-05036-00	CLAMP	$2.95	$2.66	Usually ships in 7-10 business days
7	98507-04030-00 (replaces part # 98511-04030-00)	SCREW, PAN HEAD	$1.70	$1.53	Usually ships in 7-10 business days
8	92990-04100-00 (replaces part # 92901-04100-00)	WASHER, SPRING	-	$1.02	10+ In-Stock
9	98517-04012-00 (replaces part # 97607-04112-00)	SCREW,PANHEAD	$4.20	$3.61	10+ In-Stock
10	2H3-H5569-00-00	TERMINAL, EARTH 2	$3.40	$3.06	Usually ships in 7-10 business days
11	98580-04008-00	SCREW, PAN HEAD	$6.49	$5.06	10+ In-Stock
12	92990-04100-00 (replaces part # 92901-04100-00)	WASHER, SPRING	-	$1.02	10+ In-Stock
13	9270N-06012-00 (replaces part # 97702-06012-09)	SCREW, TAPPING	$0.30	$0.27	Usually ships in 7-10 business days
14	92990-12100-00 (replaces part # 92901-12100-00)	WASHER, SPRING	$9.49	$7.40	5 In-Stock
15	90201-12593-00	WASHER, PLATE	$10.49	$8.18	5 In-Stock
16	90170-12347-00	NUT, HEXAGON	$11.49	$8.96	3 In-Stock
17	23K-85540-M0-00	C.D.I. UNIT ASSEMBLY	$132.99	$103.73	Usually ships in 7-10 business days
18	23K-H5546-01-00	BAND	$9.56	$8.60	Usually ships in 7-10 business days
19	22J-81960-92-00	RECTIFIER/REG ASSEMBLY	$127.99	$99.83	Usually ships in 7-10 business days
20	97602-05316-09	SCREW, PAN HEAD WITH WASHER	$0.95	$0.86	Usually ships in 7-10 business days
