1995 Yamaha WR250 Crankcase OEM Parts Diagram

Submodel WR250ZG - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

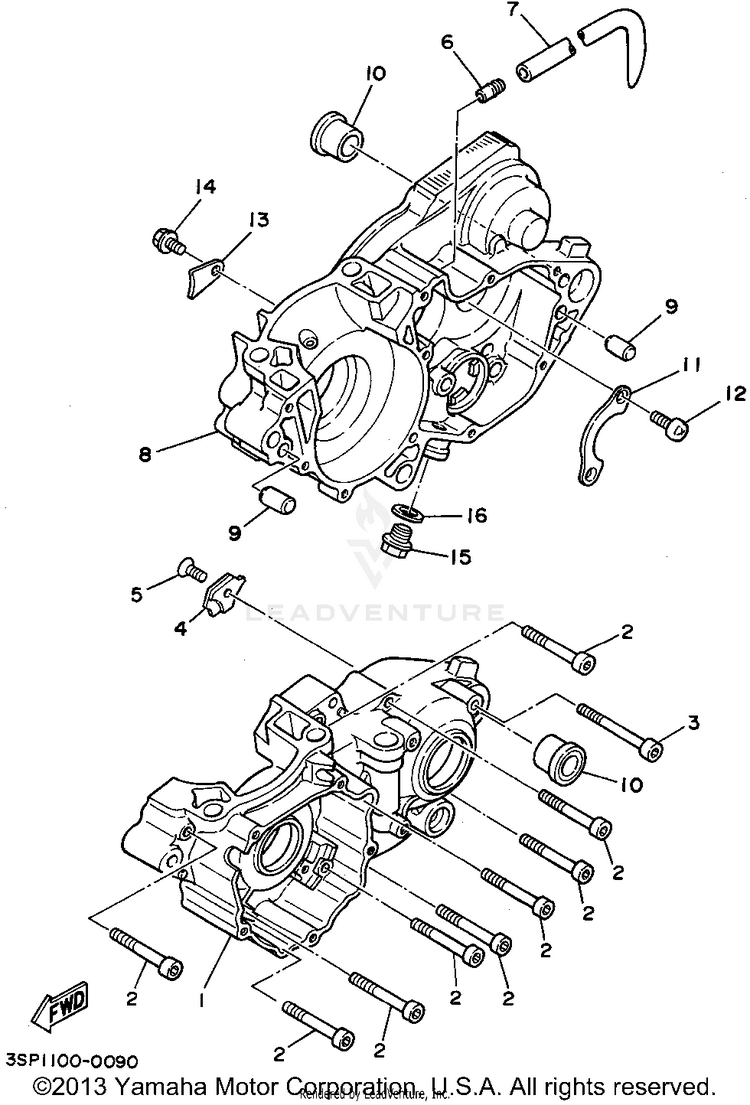

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12VM-15111-06-00

(replaces part #
2VM-15111-05-00)

CRANKCASE 1$674.99$526.49Usually ships in 7-10 business days
291317-06050-00BOLT$4.20$3.6110+ In-Stock
391317-06070-00BOLT, HEX. SOCKET HEAD$5.49$4.2810+ In-Stock
43SP-15381-00-00PLATE, BEARING COVER$29.99$24.59Not Shipping
598707-06012-00SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
6353-13115-01-00CONNECTOR, SUCTION PIPE$7.49$5.8410+ In-Stock
790445-084J0-00

(replaces part #
90445-086A8-00)

PIPE$20.99$16.3710+ In-Stock
82VM-15121-03-00

(replaces part #
2VM-15121-02-00)

CRANKCASE 2$816.99$637.25Usually ships in 7-10 business days
999530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1090387-160H4-00COLLAR$17.49$14.34Not Shipping
114L0-17471-00-00PLATE, COVER$22.99$17.9310+ In-Stock
1298517-06012-00

(replaces part #
98507-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
134V4-15118-00-00HOLDER$32.99$25.733 In-Stock
1495817-06010-00BOLT,FLANGE$5.49$4.2810+ In-Stock
1590340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
1690430-12207-00GASKET$8.49$6.6210+ In-Stock
