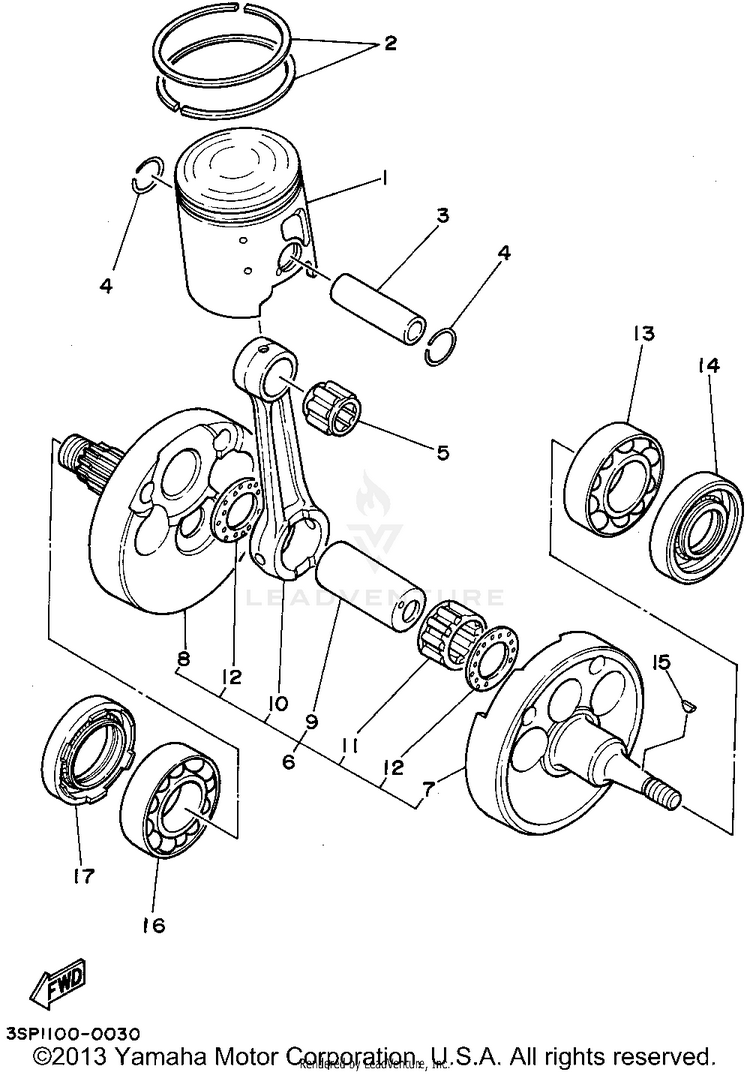

CRANKSHAFT - PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4EW-11631-01-B0PISTON (STD) | UR ORANGE$120.99$94.37Not Shipping
-4EW-11631-01-C0PISTON (STD) | UR GREEN$120.99$94.37Not Shipping
-4EW-11631-01-D0PISTON (STD) | UR PURPLE$120.99$94.37Not Shipping
14EW-11631-01-A0PISTON (STD) | UR RED$120.99$94.37Not Shipping
24JX-11603-00-00PISTON RING SET (STD)$90.99$70.97Usually ships in 7-10 business days
32VM-11633-01-00PIN, PISTON$41.99$32.751 In-Stock
493450-19052-00CIRCLIP, INNER$7.99$6.2310+ In-Stock
593310-418E9-00BEARING, CYLINDRICAL$52.99$41.336 In-Stock
64JX-11400-00-00CRANKSHAFT ASSEMBLY$374.99$292.49Not Shipping
74JX-11412-00-00CRANK 1$442.99$345.53Usually ships in 7-10 business days
84JX-11422-00-00CRANK 2$406.99$317.45Usually ships in 7-10 business days
94SR-11681-00-00

(replaces part #
3JE-11681-01-00)

PIN, CRANK 1$118.99$92.81Not Shipping
105X5-11651-03-00ROD, CONNECTING$137.99$107.63Usually ships in 7-10 business days
1193310-425P2-00BEARING, CYLINDRICAL$82.99$64.733 In-Stock
1290209-25085-00WASHER, (90209-25220)$13.49$10.524 In-Stock
1393306-37804-00

(replaces part #
93306-37802-00)

BEARING$83.99$65.6310+ In-Stock
1493102-22363-00OIL SEAL$12.49$9.7410+ In-Stock
1590280-03017-00KEY, WOODRUFF$8.49$6.8310+ In-Stock
1693306-37804-00

(replaces part #
93306-37802-00)

BEARING$83.99$65.6310+ In-Stock
1793103-40091-00OIL SEAL$35.99$28.0710+ In-Stock
