1995 Yamaha WR250 Front Master Cylinder OEM Parts Diagram

Submodel WR250ZG - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

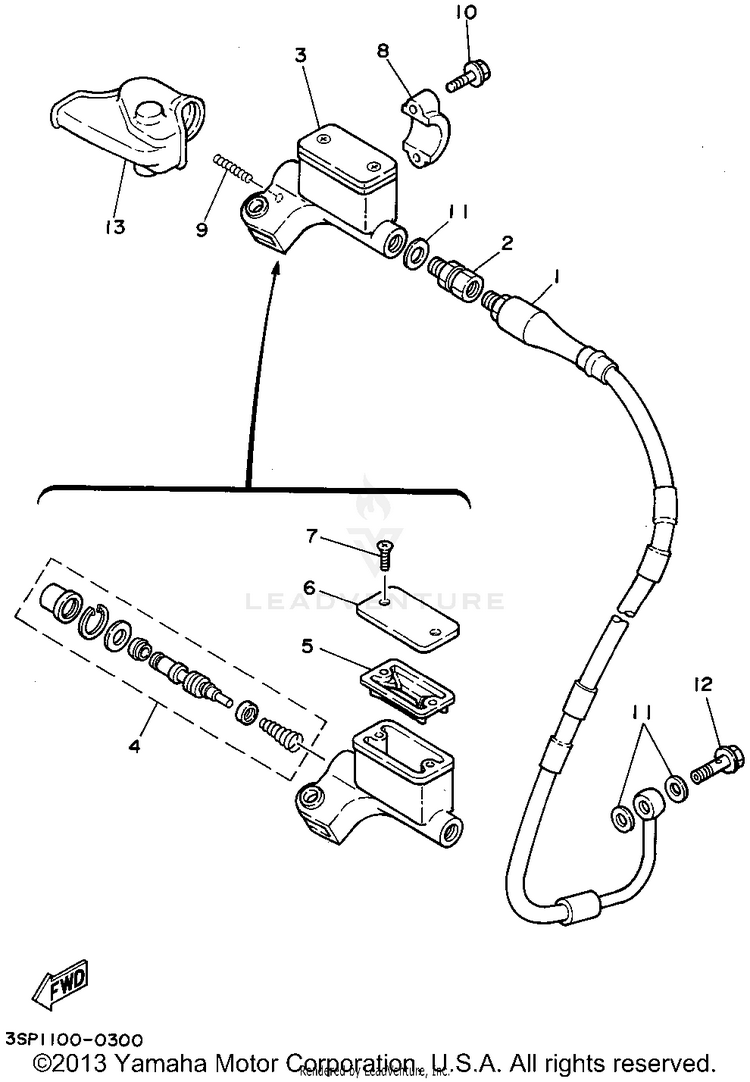

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14MX-25872-00-00HOSE, BRAKE 1 (4MX-25872-01-00)$232.99$181.73Not Shipping
23LC-25885-00-00JOINT$31.99$24.954 In-Stock
33SP-25870-01-00MASTER CYLINDER SUB ASSY$380.99$297.17Usually ships in 7-10 business days
43SP-W0041-00-00CYLINDER KIT, MASTER$63.99$49.912 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.3110+ In-Stock
556A-25854-00-00DIAPHRAGM, RESERVOIR$42.99$33.534 In-Stock
62VN-25852-02-00

(replaces part #
2VN-25852-01-00)

CAP, RESERVOIR$17.99$14.03
798707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
856A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
990501-061G2-00SPRING, COMPRESSION$3.60$3.104 In-Stock
1095027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
1190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1290401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1356A-26372-01-00COVER, HANDLE LEVER 1$26.99$21.053 In-Stock
