1995 Yamaha XT225 Serow Crankcase OEM Parts Diagram

Submodel SEROW - XT225GC - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

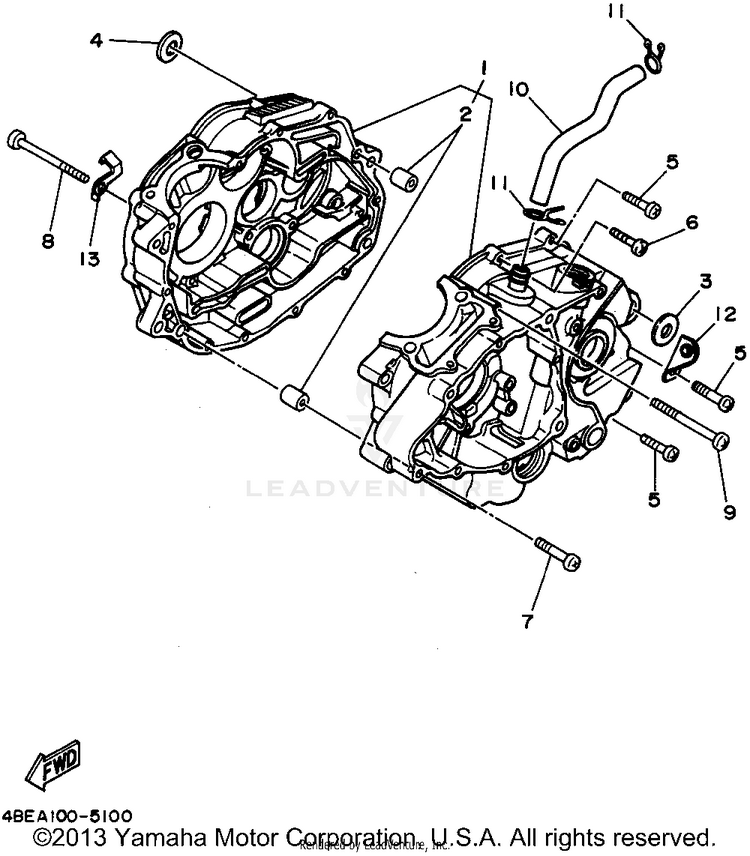

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-03013-00

(replaces part #
3RW-15100-00-00)

CRANKCASE ASY$634.99$495.29Usually ships in 7-10 business days
299530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
390387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
490387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
598517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
697885-06030-00

(replaces part #
97880-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
798507-06040-00SCREW, PAN HEAD$3.22$2.779 In-Stock
898507-06090-00SCREW, PAN HEAD$10.49$8.182 In-Stock
998507-06085-00SCREW, PAN HEAD$6.99$6.29Usually ships in 7-10 business days
101KH-11166-01-00PIPE, BREATHER 1$38.99$31.971 In-Stock
1190467-14015-00CLIP$9.49$7.407 In-Stock
1290465-08200-00CLAMP$4.70$4.23Usually ships in 7-10 business days
1390462-08193-00CLAMP$7.12$6.41Usually ships in 7-10 business days
