1995 Yamaha XT225 Serow Cylinder Head OEM Parts Diagram

Submodel SEROW - XT225GC - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

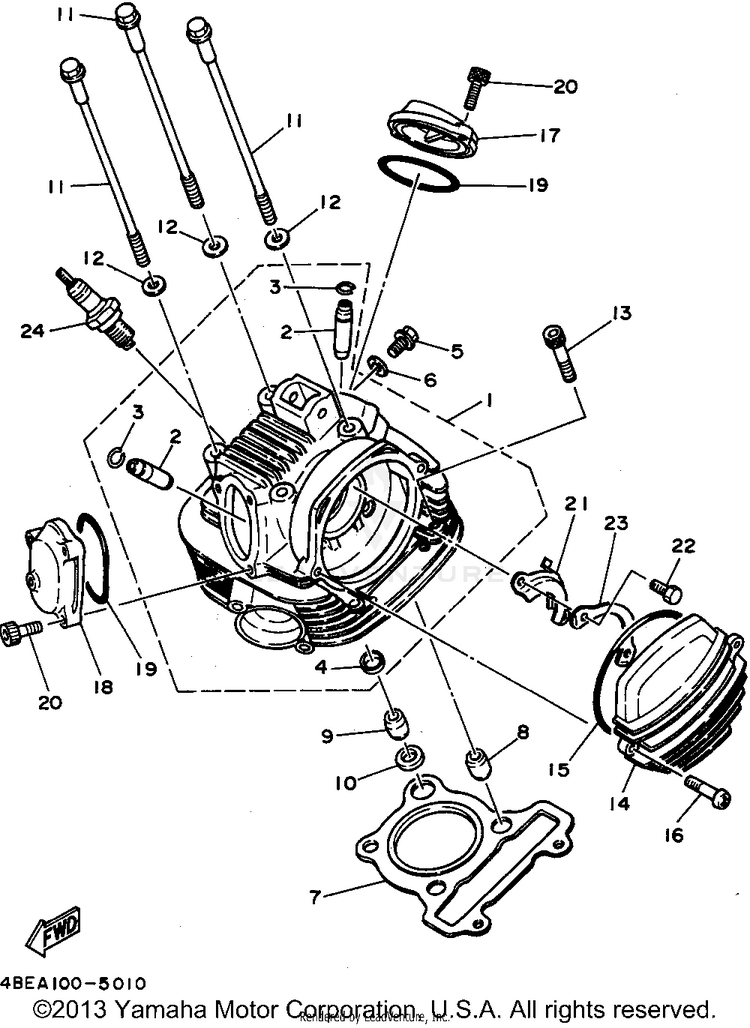

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13RW-11101-04-00

(replaces part #
3RW-11101-01-00)

CYLINDER HEAD ASSY$713.99$556.91Usually ships in 7-10 business days
25H0-11133-11-00

(replaces part #
5H0-11133-10-00)

GUIDE, INTAKE VALVE$74.99$58.492 In-Stock
393440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
490385-12039-00COLLAR$12.49$9.745 In-Stock
590153-06029-00

(replaces part #
90153-06045-00)

SCREW, HEXAGON$9.49$7.40
690430-06014-00GASKET$8.99$7.0110+ In-Stock
759V-11181-00-00GASKET, CYLINDER HEAD 1$42.99$33.5310+ In-Stock
899530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
993612-16254-00

(replaces part #
91810-08016-00)

PIN, DOWEL$6.49$5.0610+ In-Stock
1090430-12186-00GASKET$16.49$12.866 In-Stock
1190105-08160-00

(replaces part #
90105-08195-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
1290201-080L7-00WASHER, PLATE$4.05$3.4810+ In-Stock
1391317-08045-00BOLT, HEX. SOCKET HEAD$9.49$7.405 In-Stock
143RW-11185-00-00COVER, CYLINDER HEAD SIDE 1$39.99$32.79Usually ships in 7-10 business days
1593211-05471-00O-RING$16.49$12.8610+ In-Stock
1698517-06020-00

(replaces part #
98507-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
173RW-11186-00-00COVER, CYLINDER HEAD SIDE 2$31.99$26.23Usually ships in 7-10 business days
183RW-11187-00-00COVER, CYLINDER HEAD SIDE 3$25.99$21.31Usually ships in 7-10 business days
1993210-57634-00O-RING$15.49$12.0810+ In-Stock
2091317-06018-00BOLT, HEX. SOCKET HEAD$9.49$7.4010+ In-Stock
215H0-1111F-00-00PLATE$26.99$22.13Usually ships in 7-10 business days
2297017-06012-00

(replaces part #
97007-06012-00)

BOLT$4.05$3.4810+ In-Stock
2390215-06184-00WASHER, LOCK$11.49$8.968 In-Stock
24DR8-EA000-00-00

(replaces part #
NGK-DR8EA-00-00)

PLUG, SPARK (NGK DR8EA)-$4.5310+ In-Stock
