1995 Yamaha XT225 Serow Starter Clutch OEM Parts Diagram

Submodel SEROW - XT225GC - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER CLUTCH

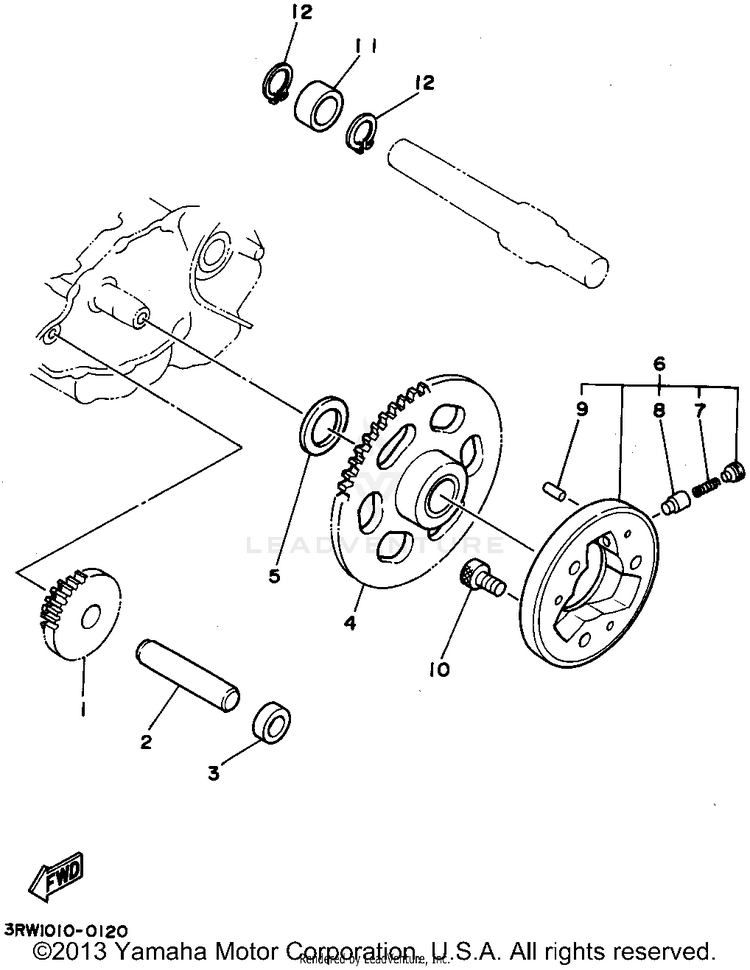

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HT-15512-00-00GEAR, IDLER 1 (41T/10T)$100.99$78.77Usually ships in 7-10 business days
25H0-15521-00-00SHAFT 1$34.99$28.69Usually ships in 7-10 business days
390387-125Y0-00COLLAR$18.49$15.16Usually ships in 7-10 business days
45H0-15517-00-00GEAR, IDLER 2 (56T)$166.99$130.25Usually ships in 7-10 business days
590201-256K6-00WASHER, PLATE (0.9T)$4.75$4.089 In-Stock
64H7-15580-10-00STARTER CLUTCH OUTER ASSY$203.99$159.115 In-Stock
790501-04596-00SPRING, COMPRESSION$10.49$8.186 In-Stock
81J7-15583-01-00

(replaces part #
341-15583-05-00)

CAP, STARTER CLUTCH SPRING$19.99$15.596 In-Stock
993615-12088-00PIN, DOWEL$8.49$6.627 In-Stock
1091317-08016-00BOLT$9.49$7.4010+ In-Stock
1190560-17368-00SPACER$8.49$7.64Usually ships in 7-10 business days
1299009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
