1996 Yamaha RT180 Cylinder OEM Parts Diagram

Submodel RT180H - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

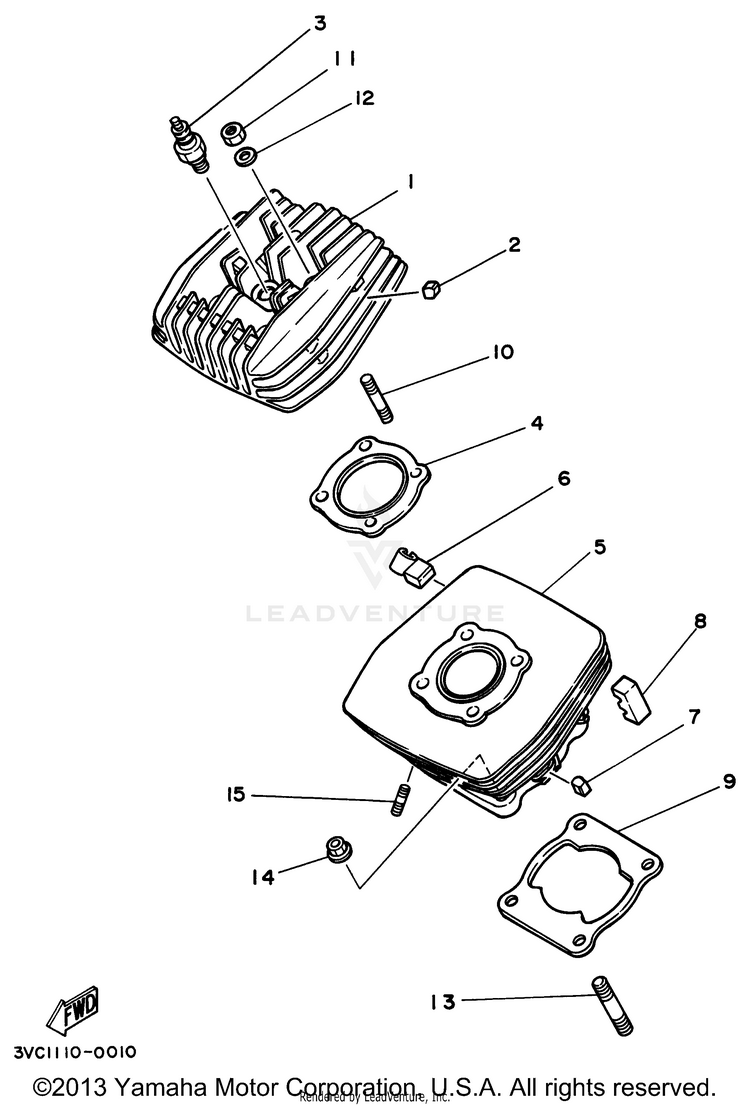

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15L9-E1111-00-00HEAD, CYLINDER 1$146.99$114.65Usually ships in 7-10 business days
25L9-E1161-00-00ABSORBER 1$3.50$3.15Usually ships in 7-10 business days
3BR8-ES000-00-00

(replaces part #
NGK-B8ES0-00-00)

BR8ES NGK SCREW TOP$4.45$4.2410+ In-Stock
43V9-E1181-00-00GASKET, CYLINDER HEAD 1$16.49$12.86Not Shipping
55L9-11311-00-00CYLINDER 1$410.99$320.57Usually ships in 7-10 business days
65L9-E1129-00-00ABSORBER 5$2.45$2.20Usually ships in 7-10 business days
75L9-E1161-00-00ABSORBER 1$3.50$3.15Usually ships in 7-10 business days
85L9-E1127-00-00ABSORBER 3$2.35$2.12Usually ships in 7-10 business days
93VC-11351-00-00GASKET, CYLINDER$4.90$4.213 In-Stock
1090116-08W09-00

(replaces part #
90116-08814-09)

BOLT,STUD$9.49$8.54Usually ships in 7-10 business days
1190179-08W05-09NUT (90179-08801-00)$3.65$3.28Not Shipping
1292907-08200-00WASHER$9.49$7.4010+ In-Stock
1395617-10625-00BOLT, STUD$3.85$3.46Not Shipping
1490179-10W07-00

(replaces part #
90179-10W07-09)

NUT,SPEC'L SHAPE$0.80$0.72Not Shipping
1590116-06016-00BOLT, STUD$5.99$4.672 In-Stock
